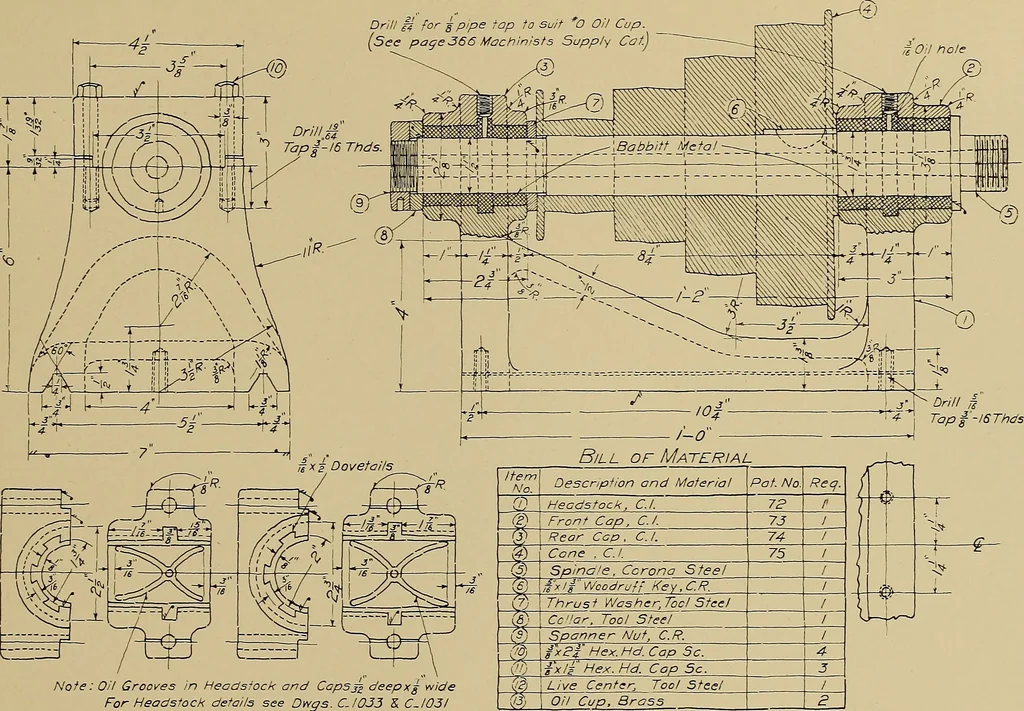

sitions of these screw holescoincide with those shown on the bed. Lay out the Bill of Material carefully; make sure that no itemsare overlooked, as this must be complete to be of real value. Try to get a clear understanding of all these lathe drawings andof the relations between the different… … Note: Oil Grooves in Headslock and Capsjz deepx^ wideFor Headsfock details see Dwgs. CJ0J3 5 C-I03I CLAS% Indusirial trade Machinist NAxtr John VY. Roberts date Feb. 6- 08. THE CARNEGIE TECHNICAL SCHOOLS PITTSBURGH, PA. School or Apppentices a\d Joupnevmen MECHANICAL DfPAYilNG 12 Speed…
