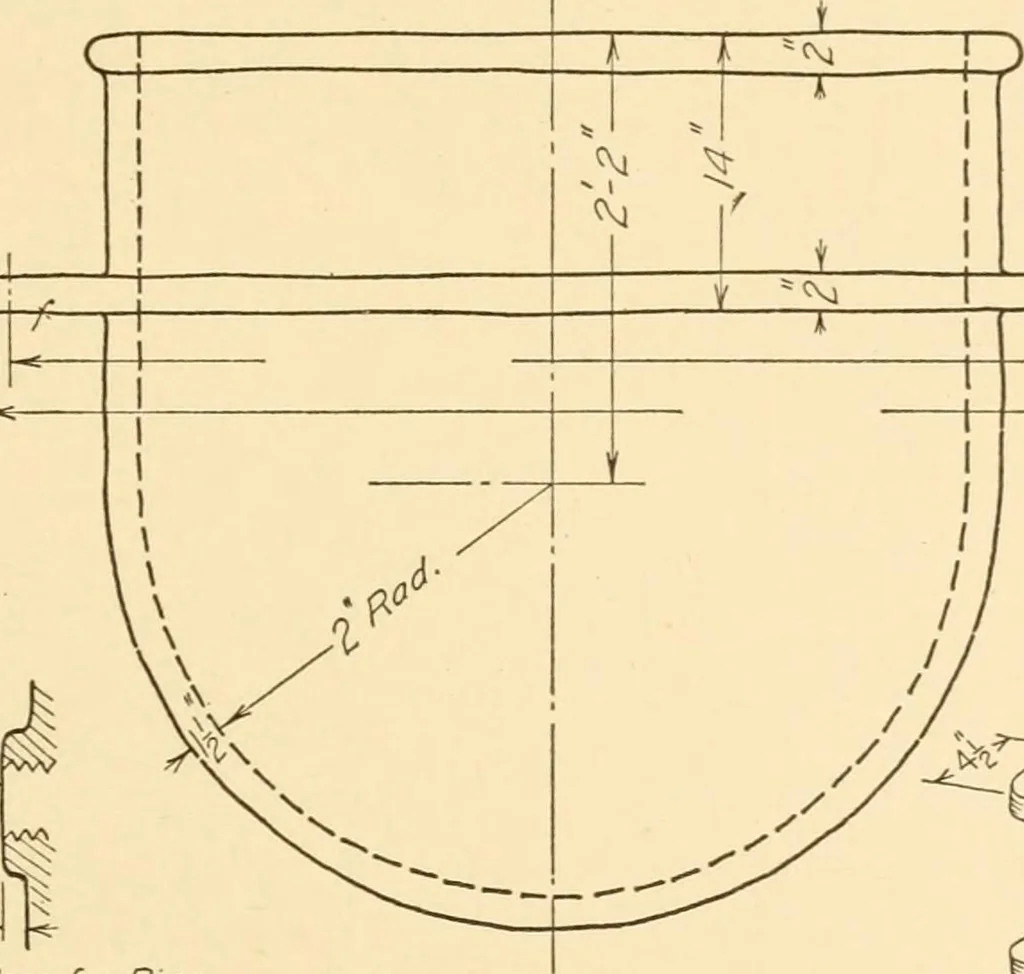

PROBLEMS AND STUDIES 195 PROB. 174, Fig. 324.—Make detail working drawings of the STEAM KETTLEparts, PROB. 175, Fig. 324.—Make an assembly working dra^ving of the STEAM JACK-ETED KETTLE. Draw sectional elevation or half section. Such dimensions as arenot given are to be supplied by the student. The… … ■ I ,Hole5 for § Bel f 5 Defo/Iof B055 for Pipe ^ Steam Kettle 4a- /§ Bo/fs 5-7D/a.
