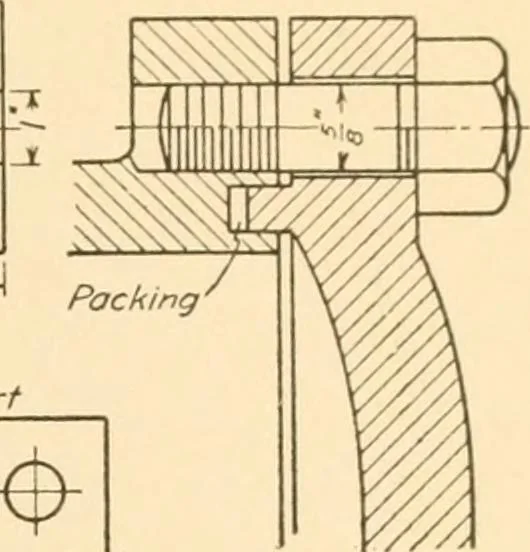

Oufside CylinderHead \ \ 1■l / / ■ Fig. 337. Ammonia Pump Details. PROB. 196, Fig. 337.—Make a working drawing of the FOOT or support. (11 X 14 space.) PROB. 197, Figs. 336, 337, and 338.—Make an assembly drawing of the ammoniapump end. Show two sectional views with all parts in working positions.…
