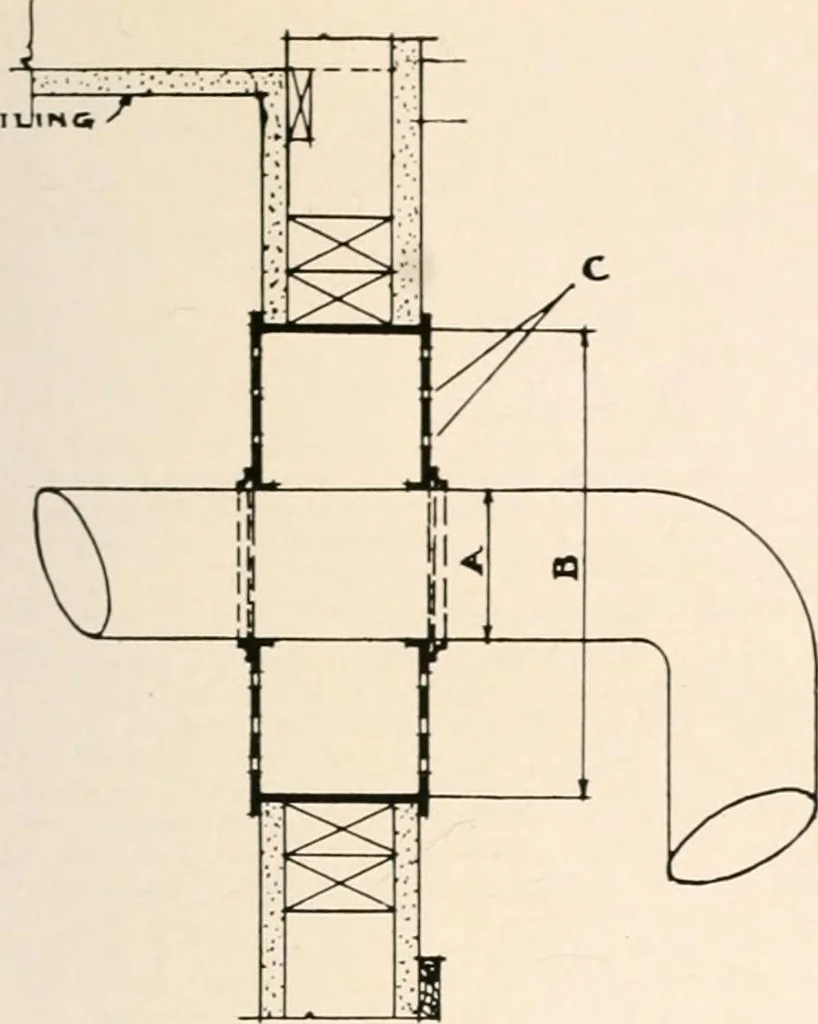

rs. The size, number andlocation of boilers to be installed in anybuilding shall be marked on the plans and.except in buildings of Class III, approvedby the Department of Smoke Inspection ofSteam Boilers and Steam Plants, and by theDepartment of Smoke Inspection, before apermit Is issued by the… … JtCTIONFig. 38. SMOKE PIPES PASSING THROUGH PARTITIONSAND WOOD WORK AROUND.Section 572.i A i Diameter of smoke pipe, 6 or less,i I! i Diameter of thimble required S greater thanillameter of smoke pipe. (C) Ventilation holes required. ial used in the construction of a chargingfloor or a roof within…
