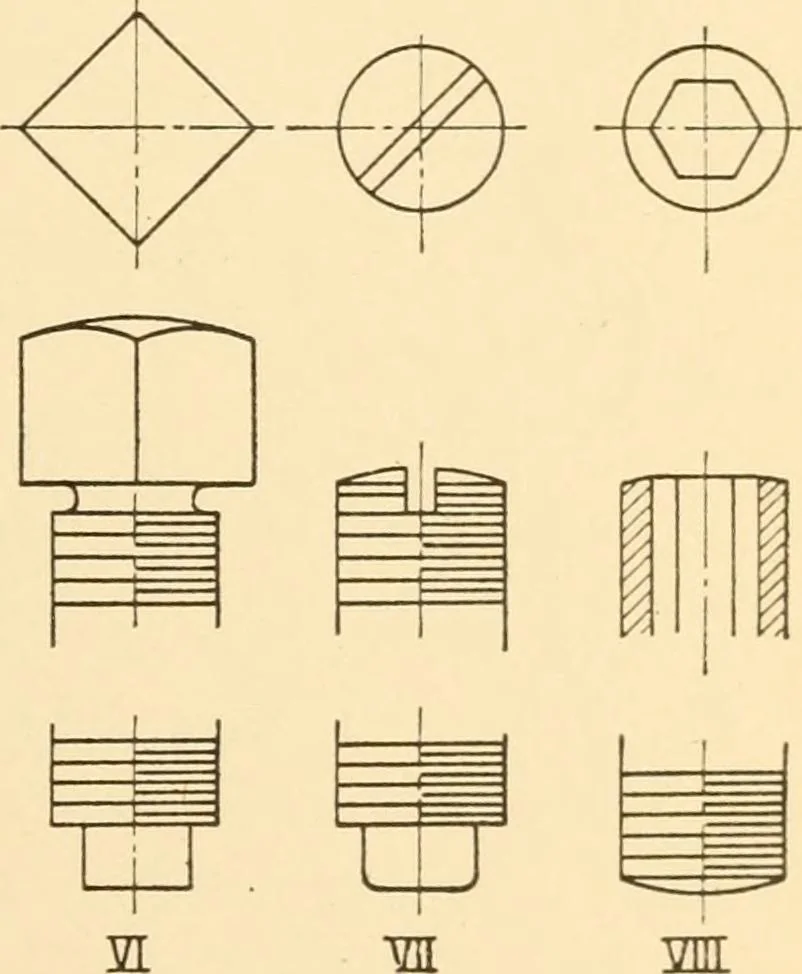

Fig. 50. Set Screws. … Several forms are illustrated in Fig. 50. Any combination of point andhead can be used. Some proportions are given in the figures. A pro- 26 MACHINE DRAWING jecting set screw on a revolving pulley is a source of great danger, andshould be avoided. The many forms of headless and hollow set…
