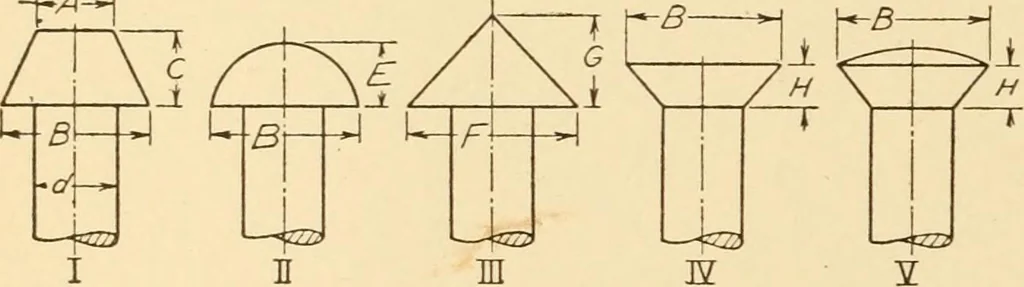

o assume theproper taper when a piece is put on the shaft. Data for various forms ofkeys is given in Tables 5 and 7. 59. Riveting.—Machines or structures composed entirely or in part,of sheet metal are fastened together by rivets, put into place red hot.Boilers, tanks, steel structures etc., are… … B- \ ) ^ ,—-« ZZ22 i r V-K- ^K- ^^ m. at] P M Fig. 61. Rivet Heads. 60. Rivet Heads.—Forms of rivet heads are illustrated in Fig. 61 anddimensions are given in Table 8. The forms of heads are as follows:I Cone head, II Button head. III Steeple head, IV Flat countersunkhead, V Oval countersunk head,…
