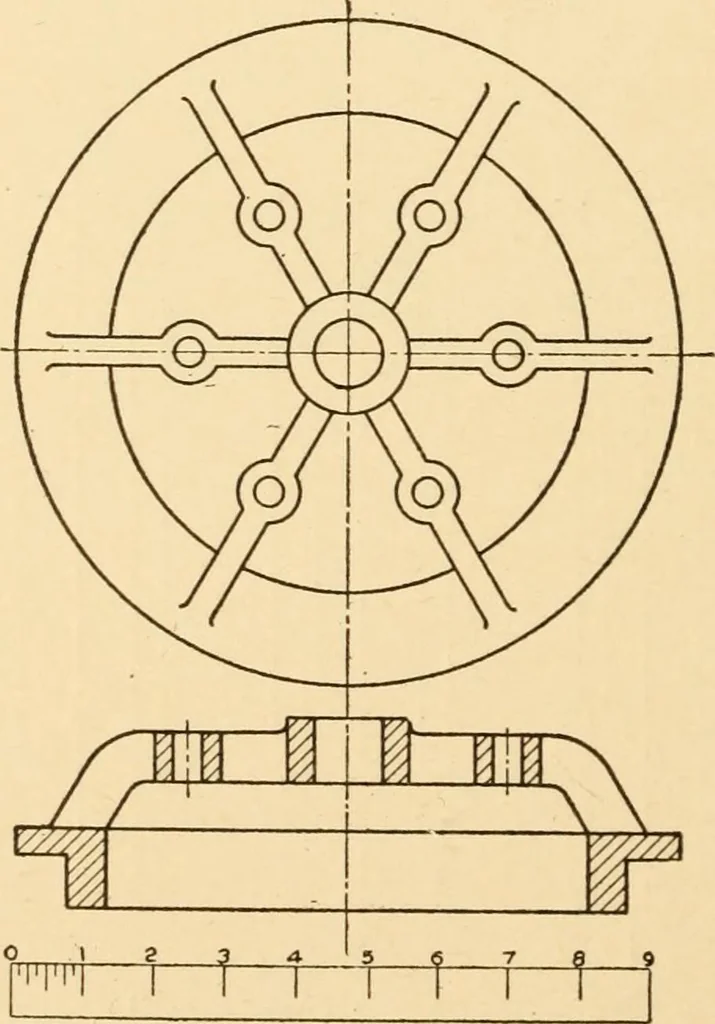

Fig. 103. True Length View. … Fig. 104. Conventional Treatment. MACHINE DRAWING 57 if shown in true projection. This treatment is illustrated in Fig. 101in which the true section is shown at I and the conventional treatmentat II. 91. There are many cases where true projection is departed from inthe interest of simplicity and…
