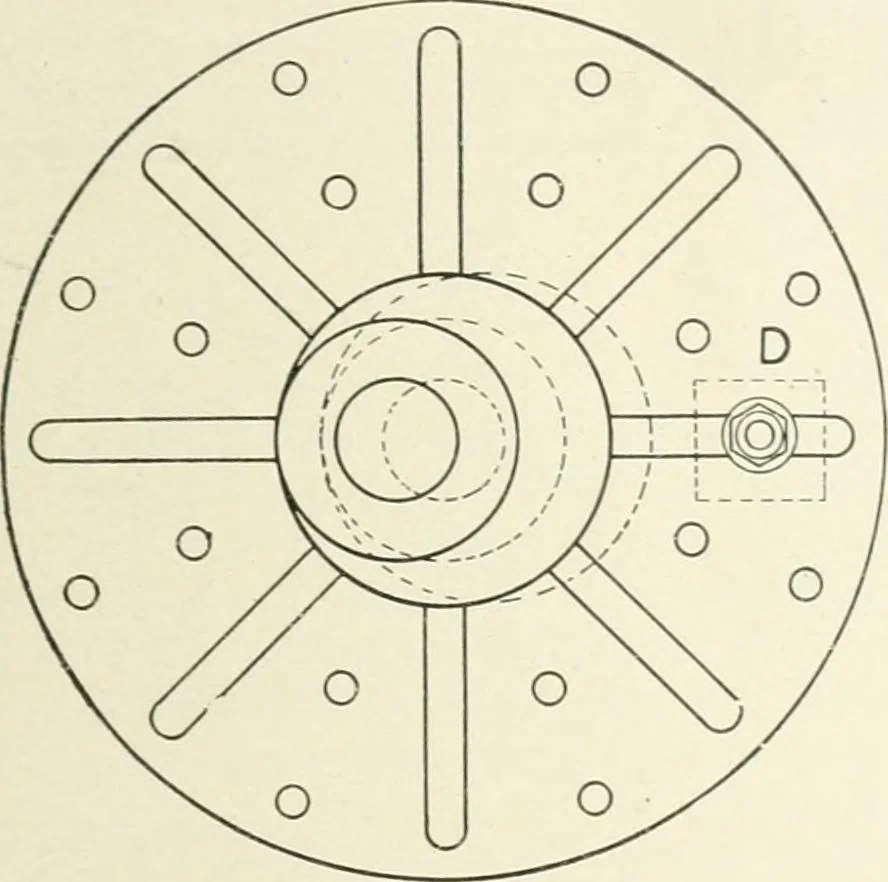

2, and 113 MACHINE SHOP WORK. 97 consists of the eccentric projx^r and a Loss to reinforce the shafthole ; this boss usually being on but one side of the casting. InFig. 142, A is the center of tlie eccentric and B the center of theshaft. Small eccentrics, especially those having a throw less than… … Fig. 144. as possible. The projecting .face of the eccentric, together withthe outside and face of the hub, may be machined, and the ht)lecan be trued up with a boring tool or by the use of the chuck drilland reamer. In either case, it is advisable to obfcun the exactdiameter by using a fiuisliing…
