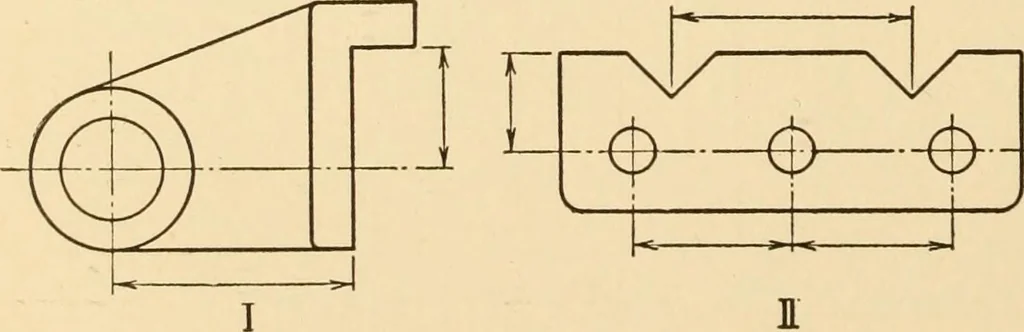

nes. III. All figures given from two reference or base lines at right angles to each other. IV. A combination of the preceding systems. The first system is favored as the dimension lines and figures are keptseparate from the interior and allow details to be easily seen. The sizeand shape are… … ^-- L/ £}-, E Fig. 115. Location Dimensions. PRINCIPLES AND PRACTICE OF DIMENSIONING 63 The third system is particularly adapted to plate work and laying outwhere holes must be accurately located. The fourth system is the one generally used but making it conform tothe first system by placing…
