Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 74

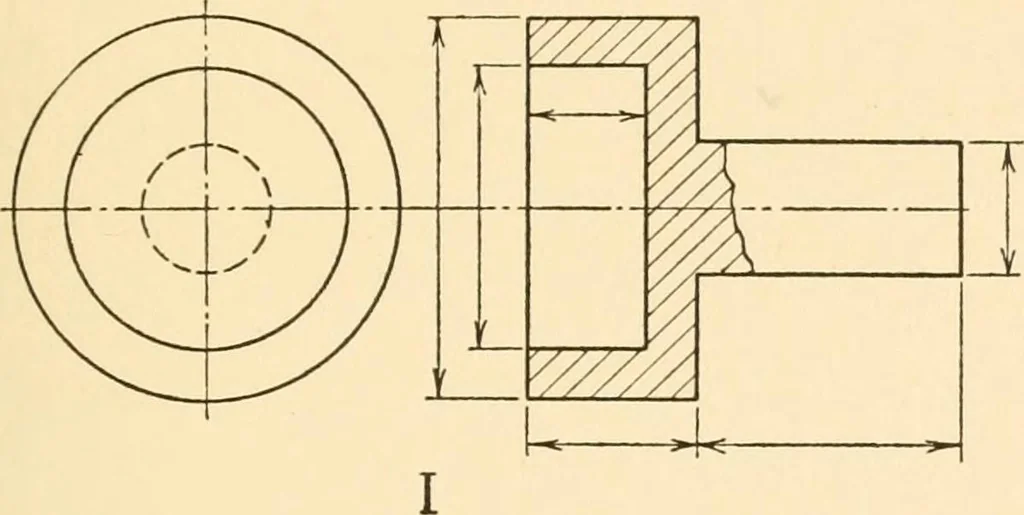

-, E Fig. 115. Location Dimensions. PRINCIPLES AND PRACTICE OF DIMENSIONING 63 The third system is particularly adapted to plate work and laying outwhere holes must be accurately located. The fourth system is the one generally used but making it conform tothe first system by placing dimensions… … 1- 1 \ i i 7 ., \ i i / k n Fig. 116. Size Dimensions. -^ 1 r u J Location dimensions are illustrated in Fig. 115, size dimensions inFig. 116 and the application of the elements in Fig. 117. Note the similarposition of dimensions, that each elementary part is dimensioned andits position fixed with…
