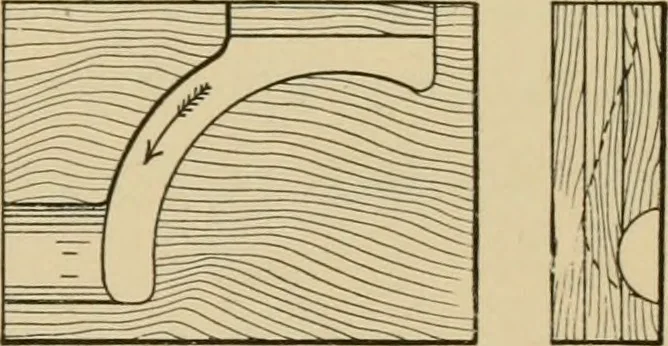

Fig. 41. Fig. 42. SLIDE VALVE CYLINDERS. PATTERN MAKING, 27 in place. The fillets at a b, Fig. 36, are cut out of a thick-ness that is inserted between the end of the steam chestand port pieces; there is no danger of the fillets comingout when made in this way. The strips on the steam chest, which…
