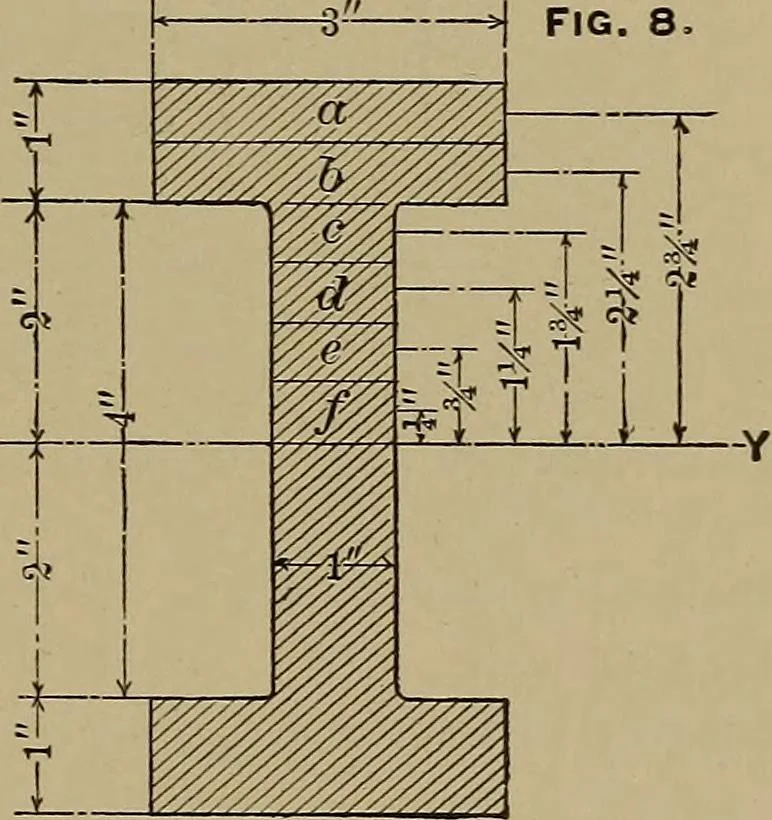

and lower half of the beam is equal;consequently, when calculating moment.of inertia for a surfacelike Figs. 8 and 7, it is only nec-essary to calculate the momentof inertia for half the beam,and multiply by 2 in order to e X —: get the moment of the whole beam. Solution: a = 3 X )4 X (2K)2 =… … for upper half,for lower half. Moment of inertia = 43.125 for beam (approximately).Area of cross-section of beam is 10 square inches. Radius of gyration = \ * ° = 2.07 inches.&J \ 10 Example 3. Find approximately the moment of inertia of a surface, asFig. 9 (usual section for cast-iron beams),…
