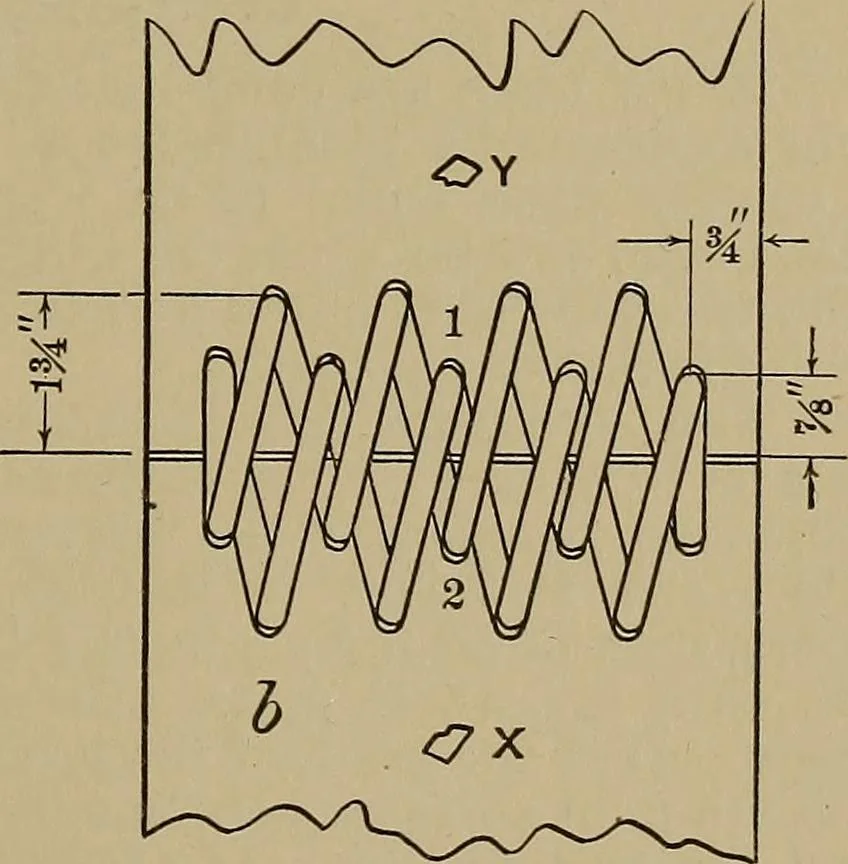

to keep the belt away from the pulleys,and thereby reduces its transmitting capacity. Lacing Belts. Figure 1 shows a good way of lacing belts; a is the side run-ning next to the pulley and b is the outside. Holes should bepunched and not made by an awl, as punched holes are less lia-ble to tear.… … making a double stitch at the edges and sewing back again un-til holes 1 and 2 are reached; and, lastly, by drawing each endof the lace through x and y. Each stitch will be double, except- 328 BELTS. ing the middle one. The holes x and y, where the ends of thelacing are finally drawn through for…
