Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 42

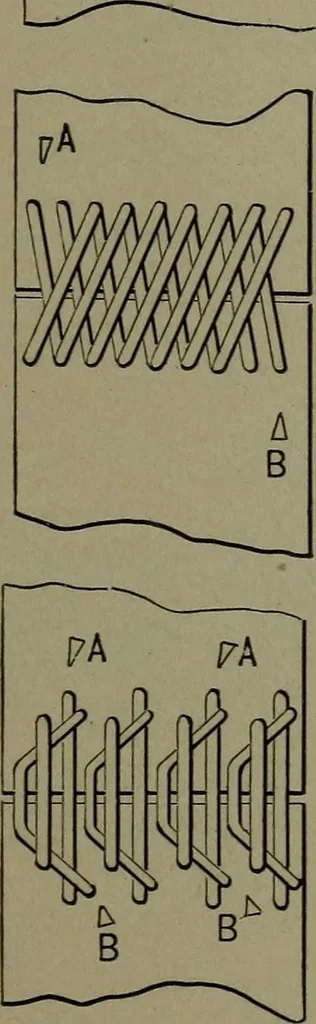

75-76. BELT LACING, for narrow belt. Commencing 3.t a, aon the inside of belt 75, drawingthe lacing to its centre; rove theends each way, ending at e, e, 76. OA … 77. BELT LACING.—Com-mencing at A and ending at B.Dotted lines on outside. 78. OVER-AND-OVER LACING.—Commencing at A andending at B. Diagonal on outside. 79. INTERLOCKING BELTLACING, from A to B, onceacross. A good style for smallpulleys. 80. CROSS LACING, for alight belt. 81. OVER-AND-OVER…
Mechanical movements
