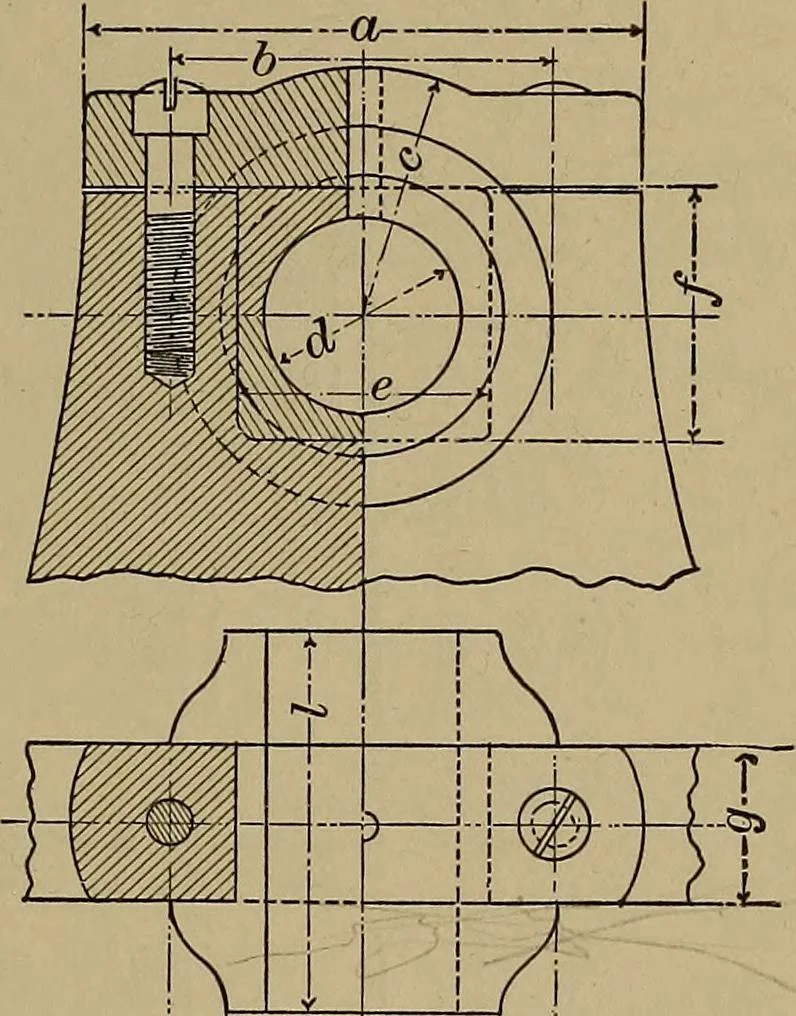

y% inch (approximately). BEARINGS. 373 Figure 5 shows a bearingfitted into the frame of a ma-chine, suitable for shafts fromone to three inches in diameter.The cut shows a part of thehead-stock of a speed lathefitted with this kind of a bear-ing. The bearing itself, whichmay be of gun metal or… … \J=*=e±l d = Diameter of bearing; /-- id; 2d; a = 2% d-\- 1 inch;b = 1 y2 d -f- % inch; c =1% d; e = f = 1% d + }i inch ;f=e = l%d+ys inch; g=Ud+ %mch; k = l%d+y%inch; i =2d. Diameter of screws = sAq d + 8/i6 inch. Figure 6 shows the form of a self-lining and self-oilingbearing, very suitable for…
