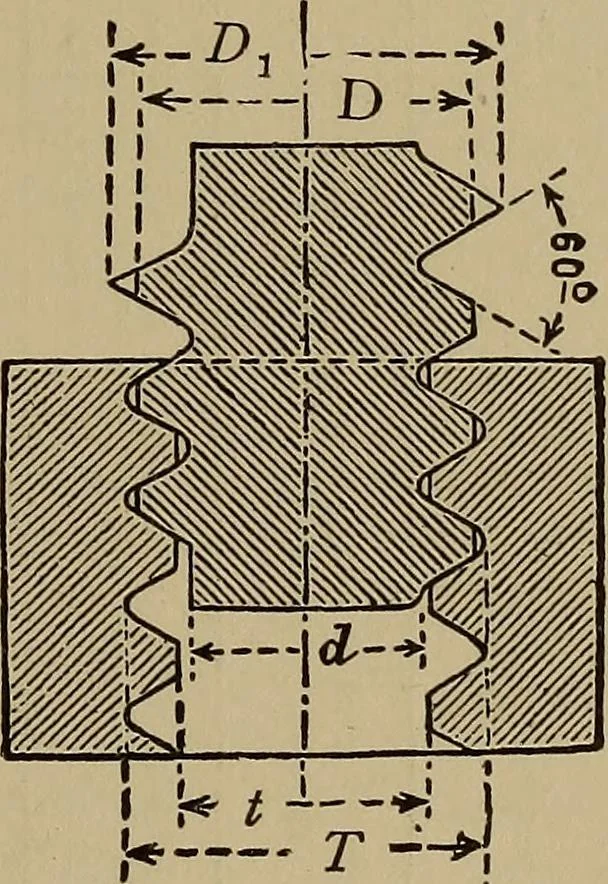

one-eighthof the pitch, and are truncatedone-sixteenth of the pitch on thetop of the threads. This will then,as is seen in Fig. 2, give a clear-ance between the nut and its screw,both at the top and at the bottom ofthe threads and secure a bearingagainst the slant side of the thread. Table No. 72… … 434 screws T = D + 0.10825 X P = Outside diameter of tap inmillimeters. d = D — 14073 X P = Diameter of screw at bottom ofthe thread in millimeters. Dr = D + 0.2165 P = External diameter as measured on afull sharp thread. TABLE No. 72. International Standard Threads. (All dimensions in…
