Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 166

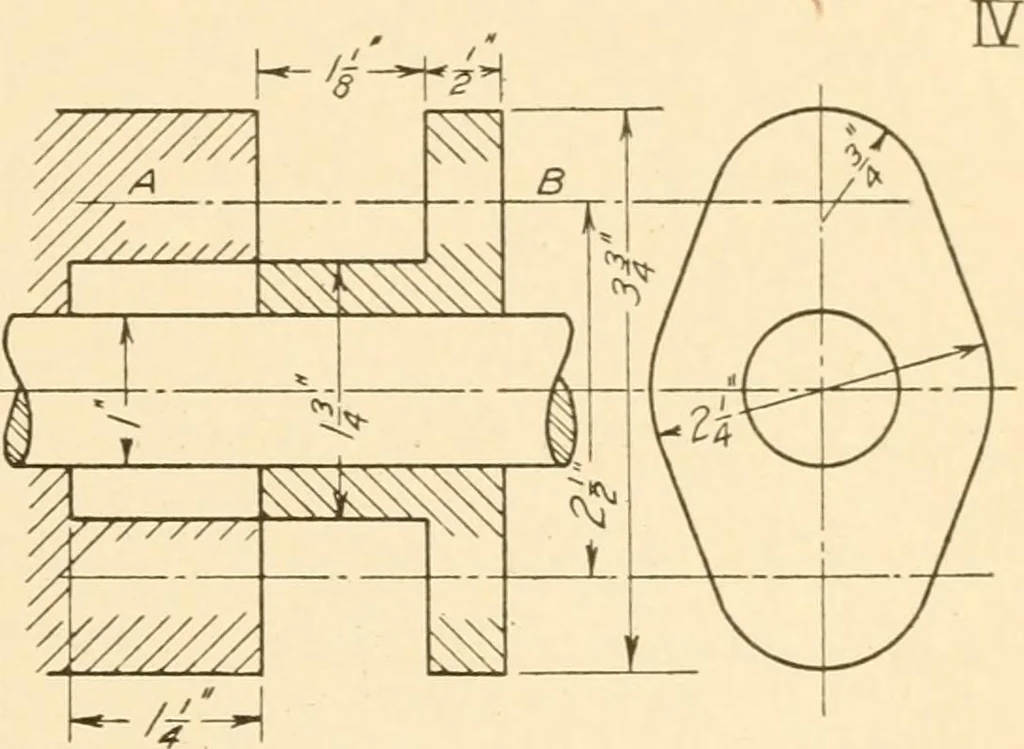

Fig. 254. Probs. 39, 40, 41 and 42. MACHINE DRAWING REPRESENTATIONS 193. The following problems are plannedfor an 11 x 14 working space. Plan thearrangement, spacing, and choice of views,by making a freehand sketch which shouldbe submitted to the instructor. The treat-ment of the views should have…
