The machinist and tool maker's instructor, containing an easy method of calculating and laying out difficult work in the machine shop .. (1896)

Genung, Edward. [from old catalog] · New York [Press of J. B. Savage, Cleveland] · leaf 204

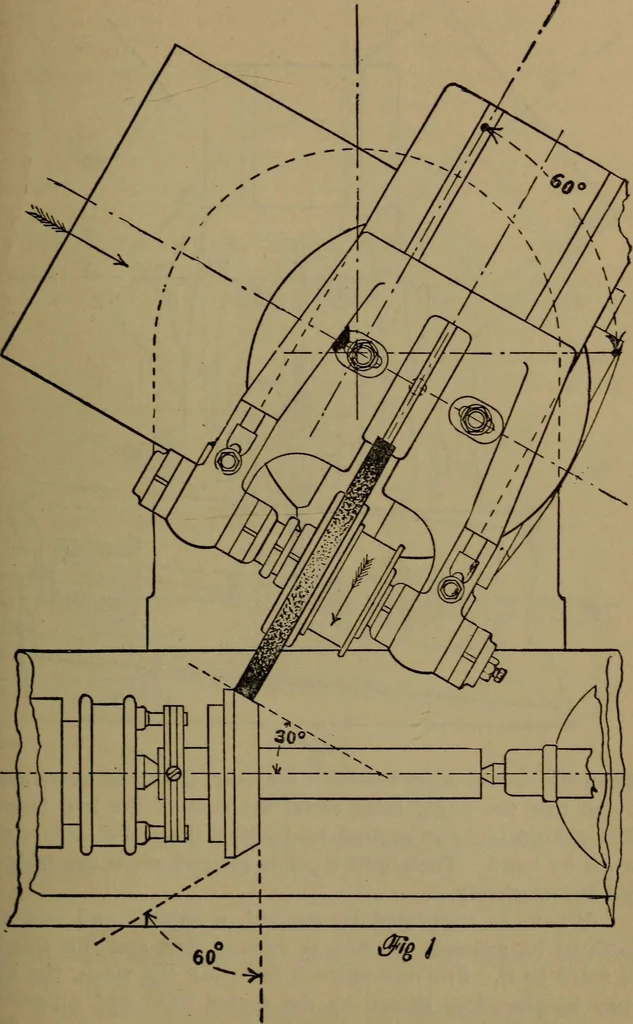

An illustration from The machinist and tool maker's instructor, containing an easy method of calculating and laying out difficult work in the machine shop .., 1896, leaf 204 — per the swivel table is set over,and for grinding the more abrupt taper the wheel bed is setas in Figure 1, but the wheel platen is here set to bring theface of the wheel parallel with the longest surface to beground. Were the abrupt taper longer than the slight taper itwould be well to set the… … 200 THE MACHINIST AND TOOL MAKEEs INSTRUCTOR.
