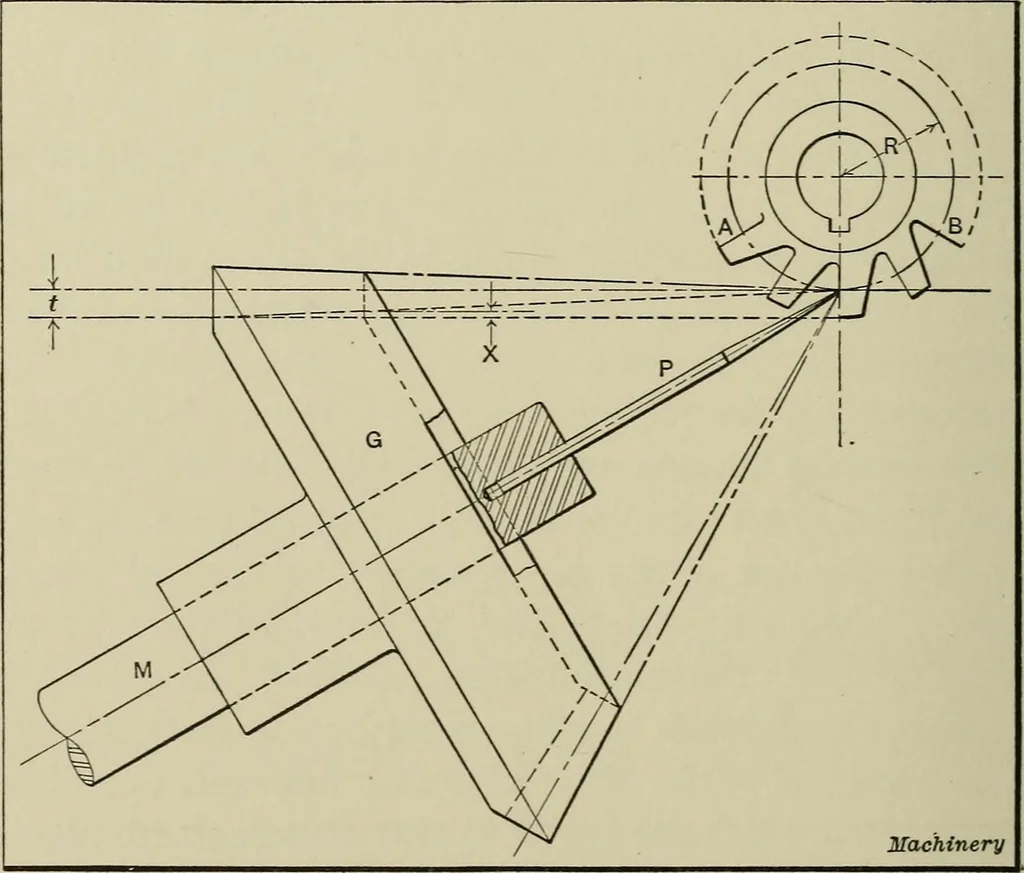

ting of the cutter to depth by this usual 274 BEVEL GEARING method, therefore, involves an error, but it is so sHght as to beneghgible. The other approximation relates to the use of theuncorrected tooth thickness and addendum for measuring thecutters in preparing the table. The chordal tooth… … Fig. s. Method of setting Bevel Gear Cutter Another Positive Method of Setting Bevel Gear Cutter. — Another method of setting the cutter for milling quiet-runningbevel gears is outhned in the following. In using this method,two cuts are required. The set-up for taking the first cut isshown in Figs.…
