Manual for railroad engineers and engineering students : containing the rules and tables needed for the location, construction, and equipment of railroads as built in the United States (1883)
Vose, George L. (George Leonard), 1831-1910 · Boston : Lee and Shepard · leaf 194

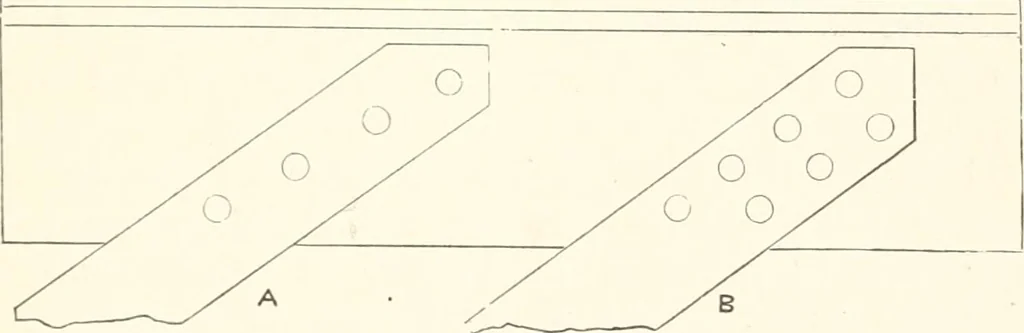

TING PARTS OF BRIDGES. 169 latter showing two different forms, in all of which the outer andthe inner rows of rivets are reduced in number. In these jointsthe strength of the plate is limited by the section through theouter row of rivets, the strength of the cover by the sectionthrough the inner… … Fig. 58. one rivet only, and is thus equally strong with the attachment atA, while having more rivet resistance. Additional illustrationswill be found in the plate representing the Canestota LatticeBridge, upon the New York Central Railroad, by Mr. Hilton. Chain Riveting. It was imagined by Mr.…
Railroad engineering
