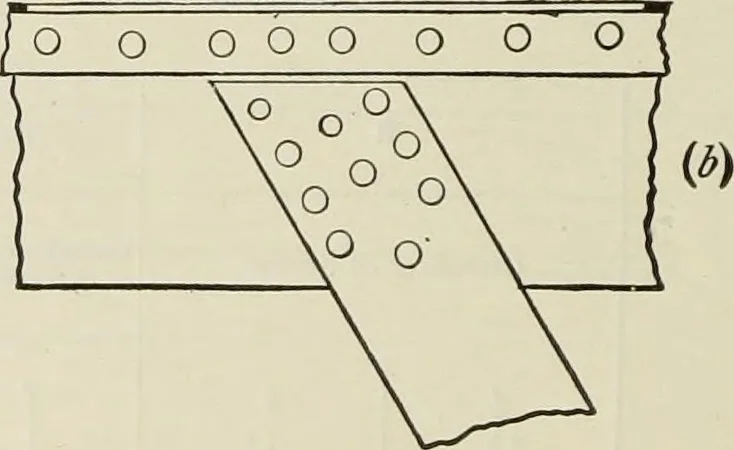

LI ■— 0 000 0 0 \o 0 o\ \0 0 o\ 1 \o 0 o\ {a) … Fig. 278. in Fig. 278 {b\ as the rivets are symmetrically placed with respect cO the axis of the piece, andthe cross-section of the plate is reduced by the cross-section of only one rivet-hole. For an angle iron, and also for any unsymmetrical shape iron, the great difficulty is to9 « place the…
