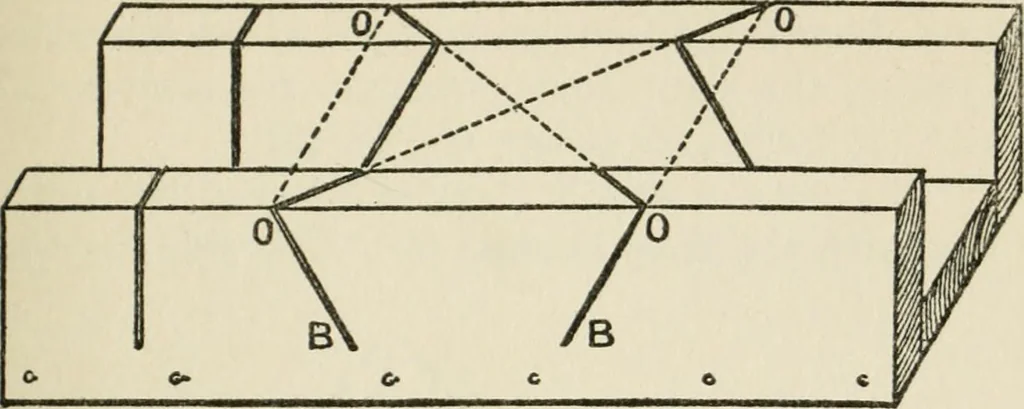

>O < ooz oo c PQ PRACTICAL CARPENTRY 237 Mitering Moudings. One of the most troublesome things the car-penter meets with is the cutting of a spring mould-ing when the horizontal portion has to mitre with … FIG. 181 a gable or raking moulding. Undoubtedly thebest way to make good work of these mouldings isto use a mitre box. To do this make the downcuts, B,B (Fig. 181), the same pitch as the plumbcut on the rake. The over cuts 0,0,0,0 shouldbe obtained as follows: Suppose the roof to be a
