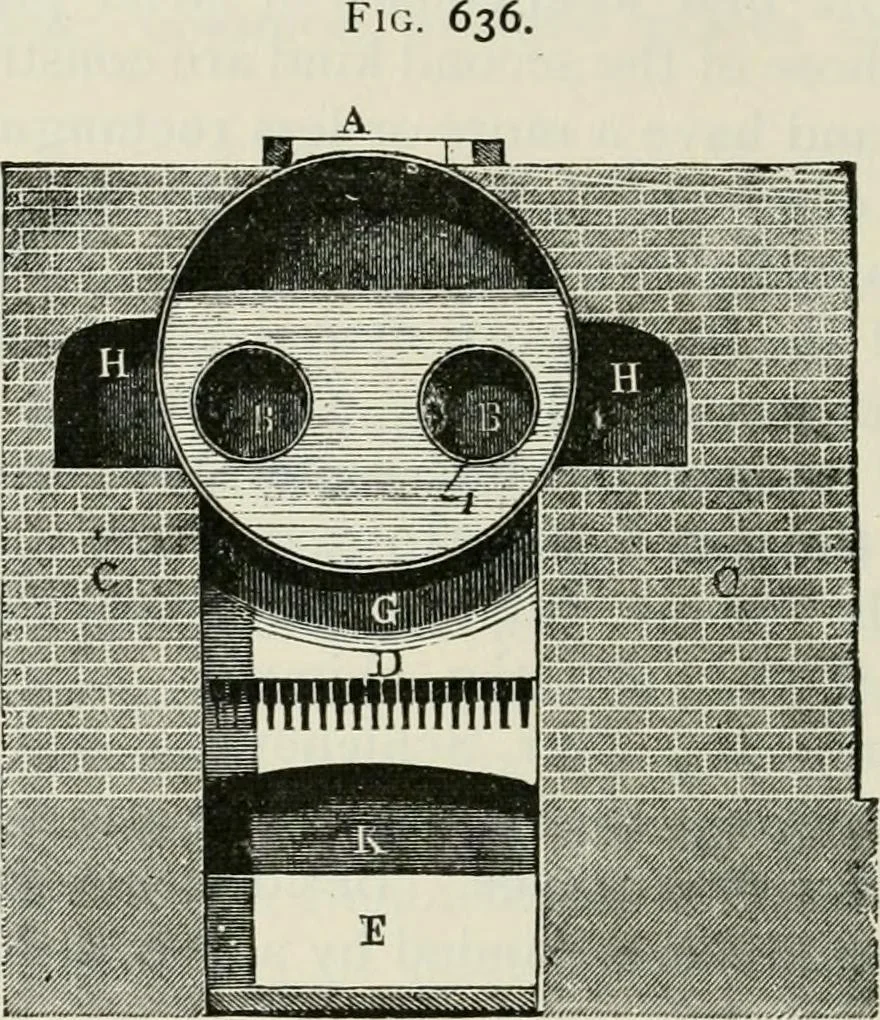

l82 HEAT, STEAM, AND STEAM ENGINES. [§418. ment of a boiler construction with external furnace is shownin Fig. 635 in longitudinal, and in Fig. 636 in cross-section.Here A is the steam boiler with two flues B B ; further, C isthe brickwork, D the grate, E the furnace door, F the ash-pit, G that… … pass beneath the boiler, and H H are the flues throughwhich these gases pass along the side of the boiler afterhaving returned by the flues BE. The atmospheric airpasses through the air channel K from behind, but can also,as Fig. 635 shows, flow in from the sides, A suitable construction for a…
