A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)

Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 220

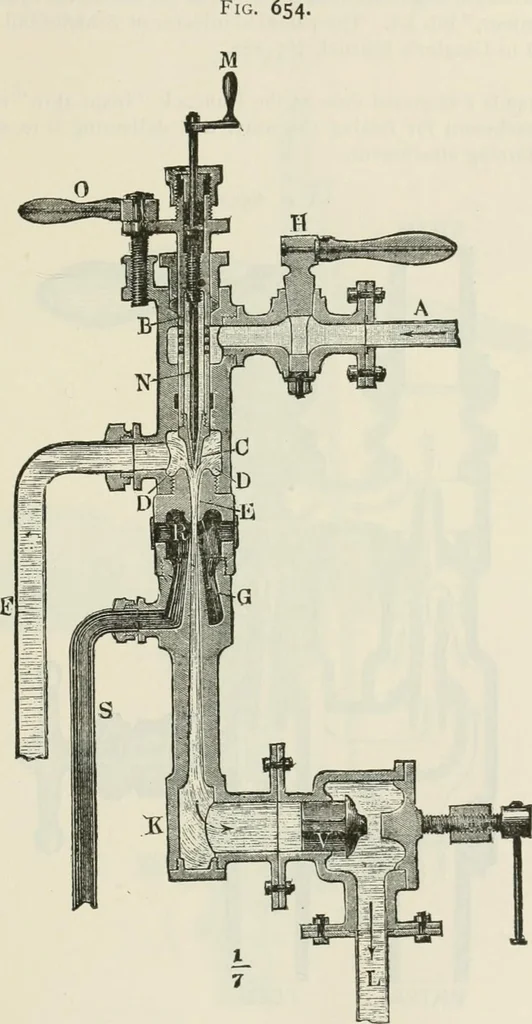

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 220 — p through thepipe F, but also the water formed by the condensation ofthe steam. Another conical mouth-piece G receives thewater passing through E, and conducts it into the pipeK, which communicates by L with the water space of theboiler. The regulation of the quantity of steam is effectedby a crank… … another crank O, by means of which the pipe B C can beraised or lowered, and thus the distance of its orifice fromthe bottom of the chamber Z> Z) increased or diminished. 208 HEAT, STEAM, AND STEAM ENGINES. [§ 426. The superfluous feed water which does not enter G collectsin the chamber R and…
