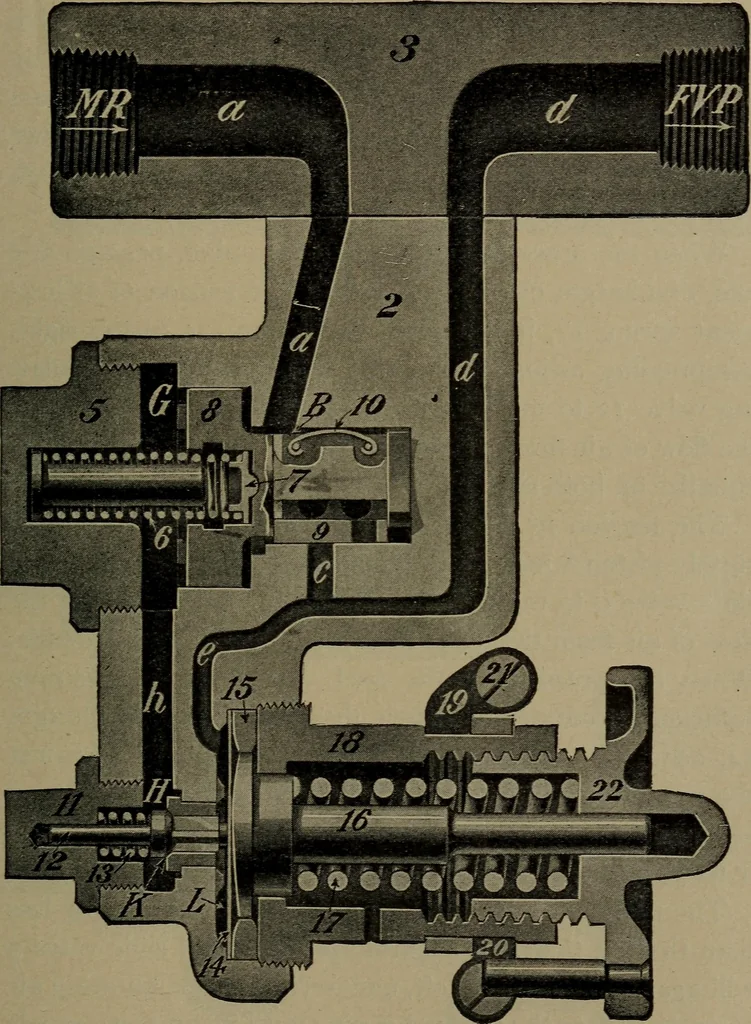

Fig. 80.—B-6 Feed Valve RemovedFrom Pipe Bracket. and its spring 6. The regulating part consists of theregulating valve 12, regulating valve spring 13, diaphragm14, diaphragm spindle 16, regulating spring 17, andregulating hand wheel 22. 666. The operation of this valve is as follows:—Main… … Fig. 8i.—B-6 Feed Valve, Closed, 248 THE B-6 FEED VALVE in slide valve 9 to register with port e in its seat. Air nowflows directly from a through b, c, and d to the feed valvepipe marked /, v, p. At the same time air is flowing bypiston 8 to chamber g, then through passage h and h pastregulating…
