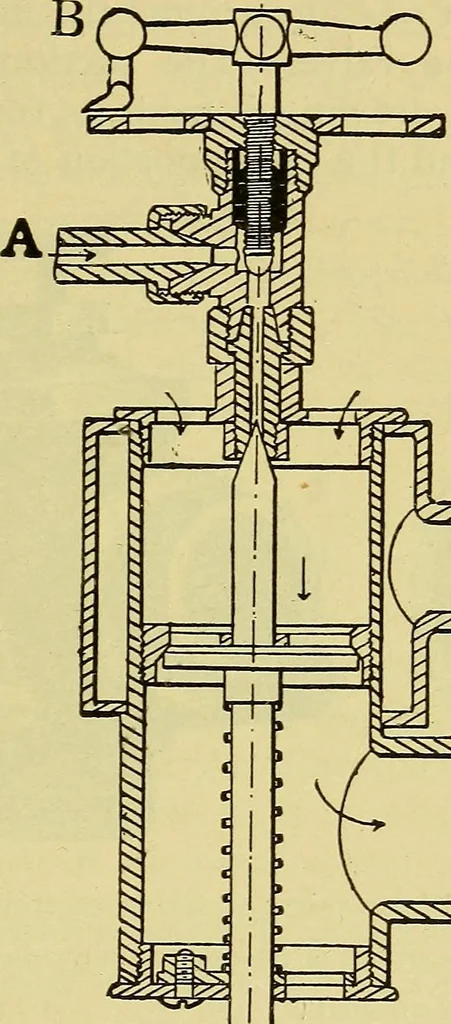

d carburetter used on De Dion carriages is shown in Fig.282. It assimilates the common patterns. CARBURETTERS AND VAPORIZERS, 253 The Huzelstein Valve Carburetter.—From the earliest daysof the use of liquid fuels for explosive engines, numerous in-ventors have produced designs of carburetters or… … XZ2ZZZZ -M *^Z&ZZZZ D RvWKWW^ ^SSSSSSV^ Fig. 173.—The Huzelstein Carburetter. A is the inlet for gasoline; B, the valve control-ling inlet; C, the tube leading to cylinder combustion space; D, tube for leading hotexhaust gases around the jacket on the mixing chamber. Arrows indicate entrancefor…
