A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 285

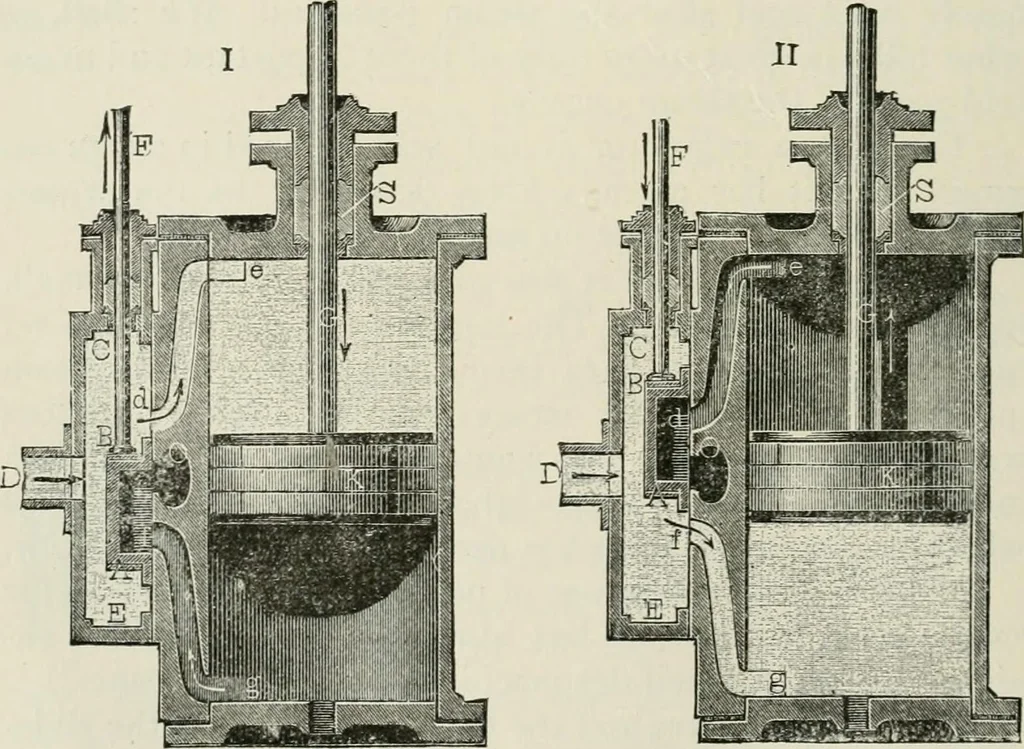

engine. The latter resemble somewhat the letter C,whence we may call it the C valve. Such a slide valve §447-] THE STEAM ENGINE. 273 is shown in Fig. 700, I and II. A B \^ the slide whichis confined by the steam chest CDE, and moved by thevalve rod B F. The steam passing through D enters, in…
Mechanics, Applied · Mechanical engineering
