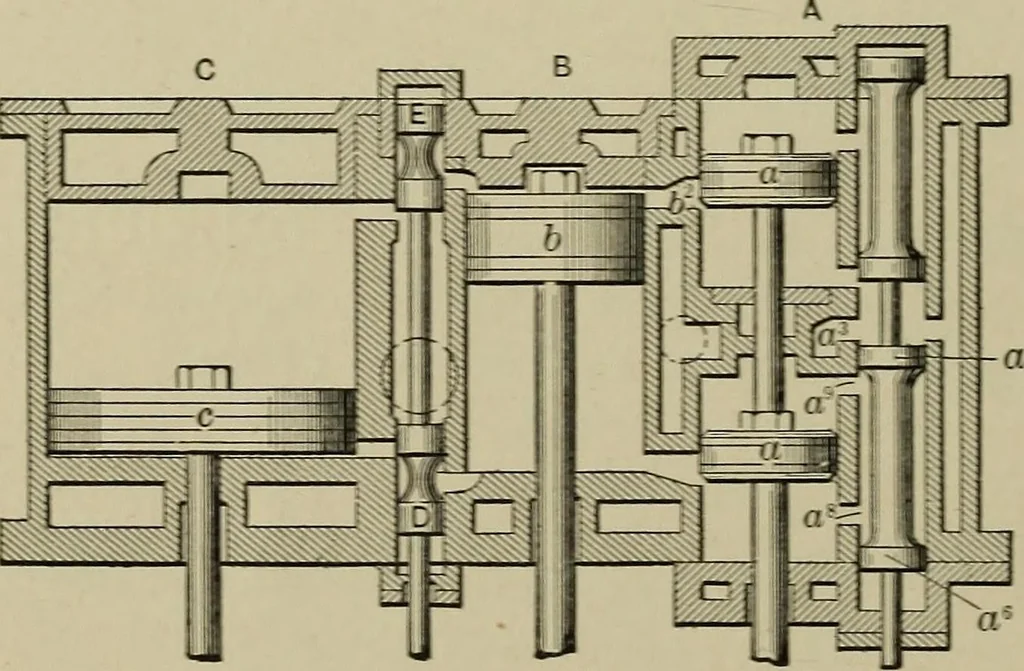

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 79
to enter cylinder B abovepiston b at full pressure, but the crank to cylinder A is on the quarterwhere it moves at its highest speed, while the piston B moves down.It will also be seen that lower piston A reaches the top of its cylinder.At the same time, but instead of being in a position to… … STEAM POWER APPLIANCES. 75
