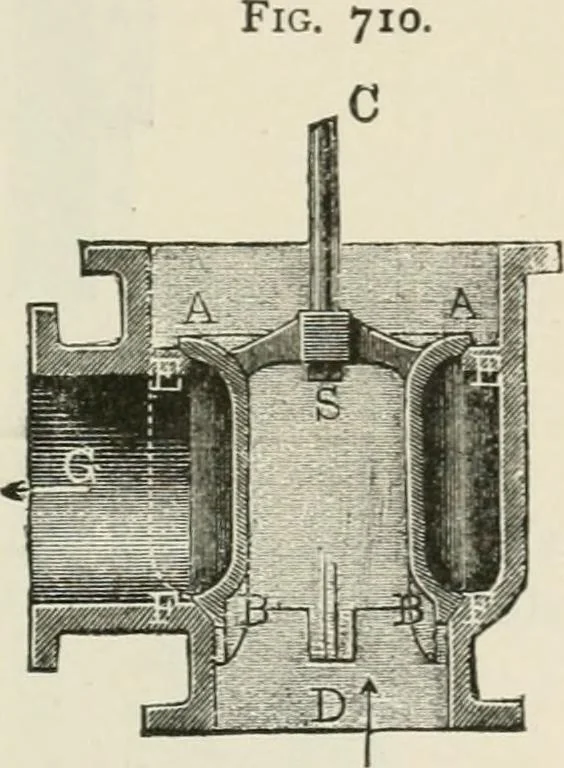

Ein neues Doppelsitzventil, in the Schweiz. polytechn.Zeitschrift, 1856). Such a valve is shown in Fig. 710.Here the pipe ABBA, which is lifted by the rod SC, iswidened at both ends and turned off so that it sits upon thevalve seats at E FFE. As shown in the figure, the steamentering at D is shut…
