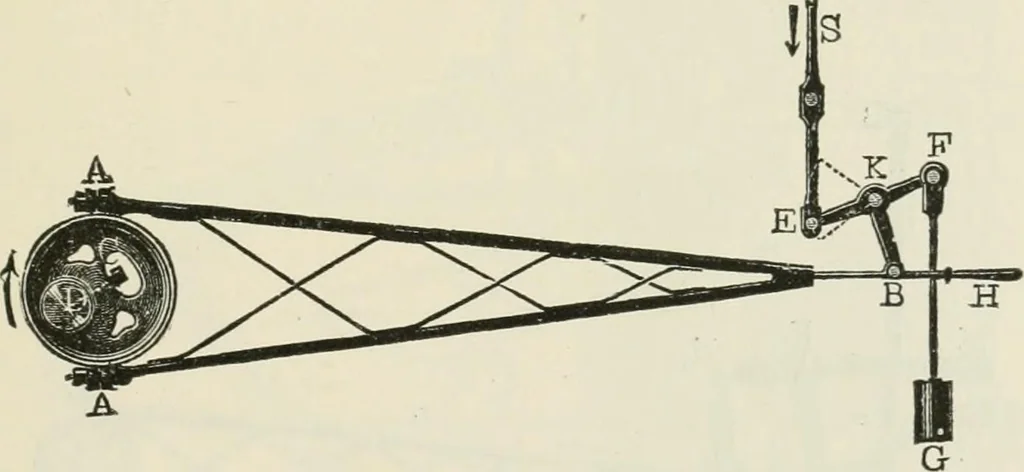

thnumerous teeth. The circular eccentric is the simplestform for the outer gear, and is that most generally used;we will explain it, therefore, first. The eccentric consists of a cast-iron cylindrical pulleyA CA, Fig. 727, revolving about the axis D, which is notat the geometrical axis C, and is… … bell-crank lever, the other arm KE of which is fastened tothe valve stem E S. In order to counterbalance theweight of this latter, a counterweight G is hung upon athird arm KE. The working of this apparatus is easilyexplained ; the centre C of the eccentric describes witheach revolution of the…
