A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 316

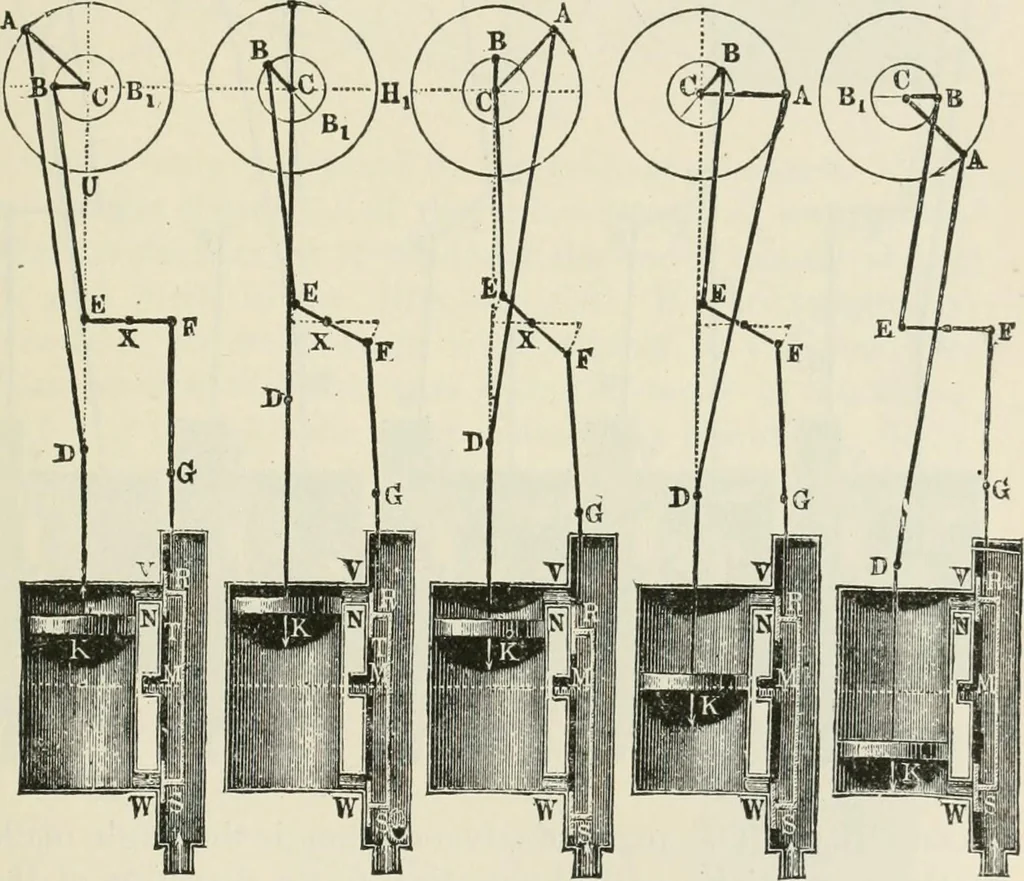

h anequal-armed lever E Fhy means of the rod FG, this leverbeing, in turn, connected by the rod B E to the centre B ofthe eccentric disc. Thus the motion of the slide is the § 46o.] THE STEAM ENGINE. 303 same in amount, but opposite to the direction it wouldhave if it were directly connected at E… … were = go°, the slide R S would be in its central positionat the times when the piston is at the end of its stroke, orwhen the crank is on its dead points. In order, therefore,that the entrance port may be a little open when the pistonarrives at the end of its stroke (Fig. 735, II.), the angleA C…
Mechanics, Applied · Mechanical engineering
