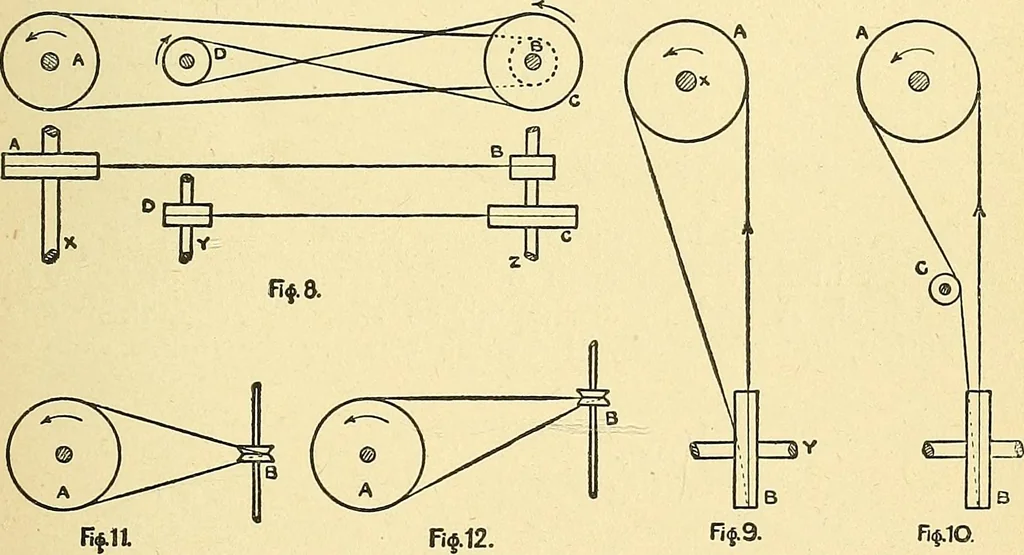

the tightness of the belt, the condition of the surface of thebelt and pulley, atmospheric conditions, relative sizes of pulleys,the power being transmitted, and the speed of the movement ofthe belt. Each case ought to be tested and the difference notedbetween the actual and calculated speeds. As a… … Fig. 8 represents the driving of two shafts X and Y nearto and parallel to each other. Fig. 9 is a half cross-drive where the two shafts X and Yare at right angles to each other. This is a very commondrive in the card-rooms of spinning-mills. Fig. 10 is similar to Fig. 9, but a guide pulley C is…
