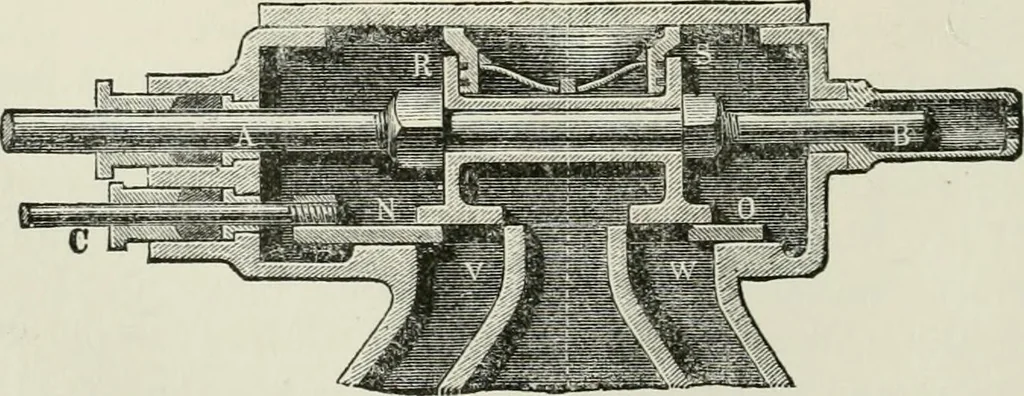

order now to cause the exit to commence before the en-trance upon the other side of the piston K, the breadth ofthe ports V and W can be varied by the movable seats Nand O. In I., these seats are in the lowest position, so thatthe entrance through Fis retarded, and in II.in the highestposition, so… … In Fig. 768 we have the arrangement of Adams equili-brium slide with such a movable seat. RS\^ the slide moved § 473-] THE STEAM ENGINE. 347 by the rod AB, and NO the movable seat moved by therod CN. Fig. 769 shows the form of movable slide seat Fit;. 769.
