A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 361

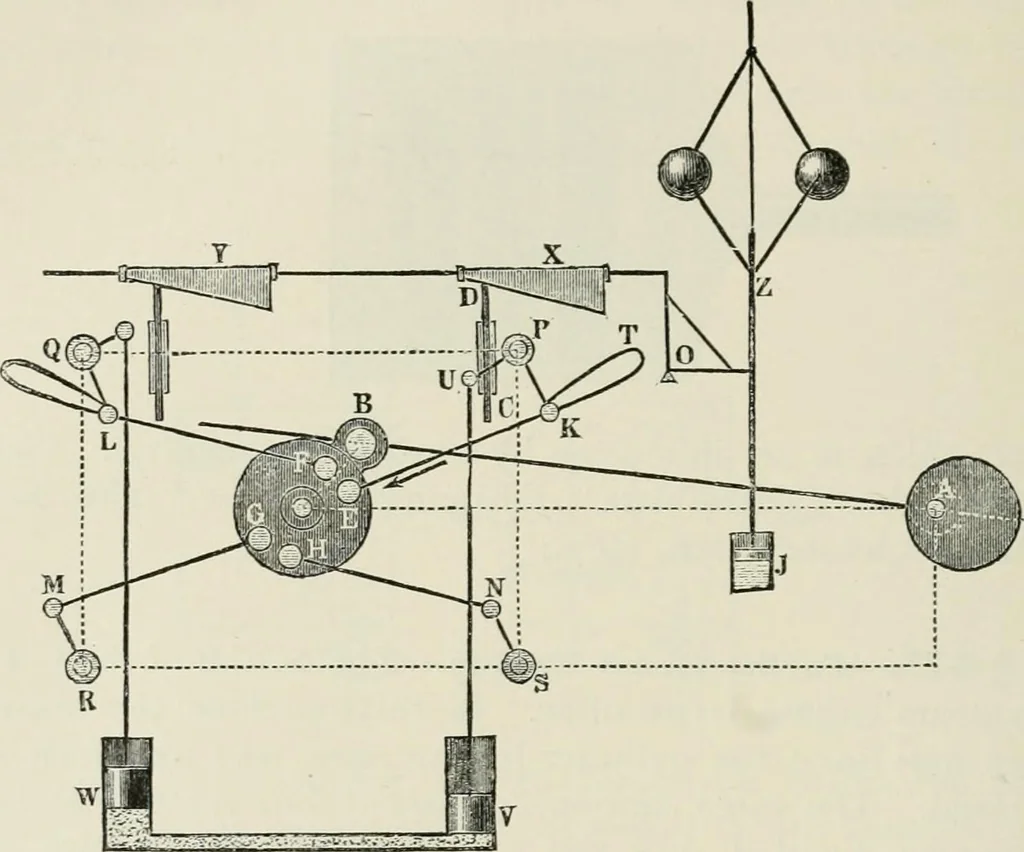

B and i?,, for the release of the steam. These valves are asclose as possible to the ends of the cylinder, in order thatthe prejudicial space may be a minimum. The valve motionis effected partly by eccentrics and partly by weights. An 348 HEAT, STEAM, AND STEAM ENGINES. [§473- ordinary circvilar… … and this last, by means of the rods E K, FL, G 31, and HN,and the corresponding arms KP, L Q, MR, and iVvS, sets inmotion the four valves P, Q, R, S, part directly and partlyindirectly. For the two emission valves R and S, the con-nection is direct; for the two admission valves P and Q,there is,…
