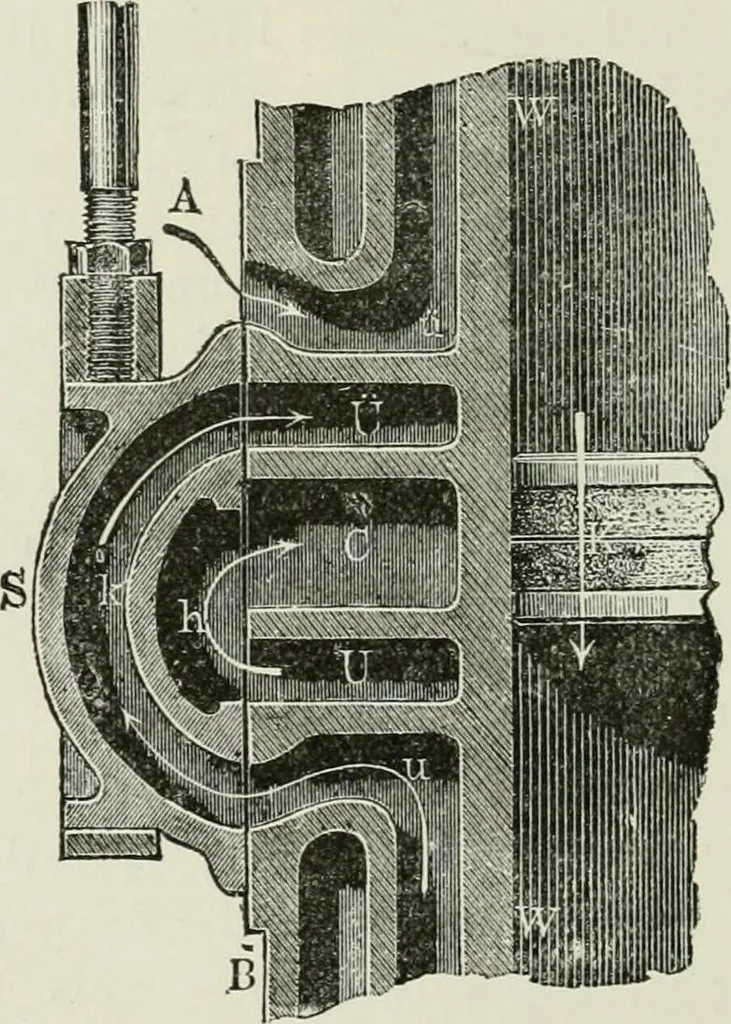

am passes through ji below the small piston,and at the same time the steam above this piston passes byii and k through U^ below the large piston, while the ex-haust steam passes through Uh C to the condenser. To move the double slide, a device of recent and, ac-cording to Hornblower, of… … revolving disc ^ S in such a manner that one side A B cor-responds with the circumference, while the opposite cornerC falls at the centre of the disc. The cam acts upon twostraight edges Z> £, i^ 6^, at right angles to the slide rod,and whose distance apart, D F = EG,\s the radius of thebounding…
