A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 424

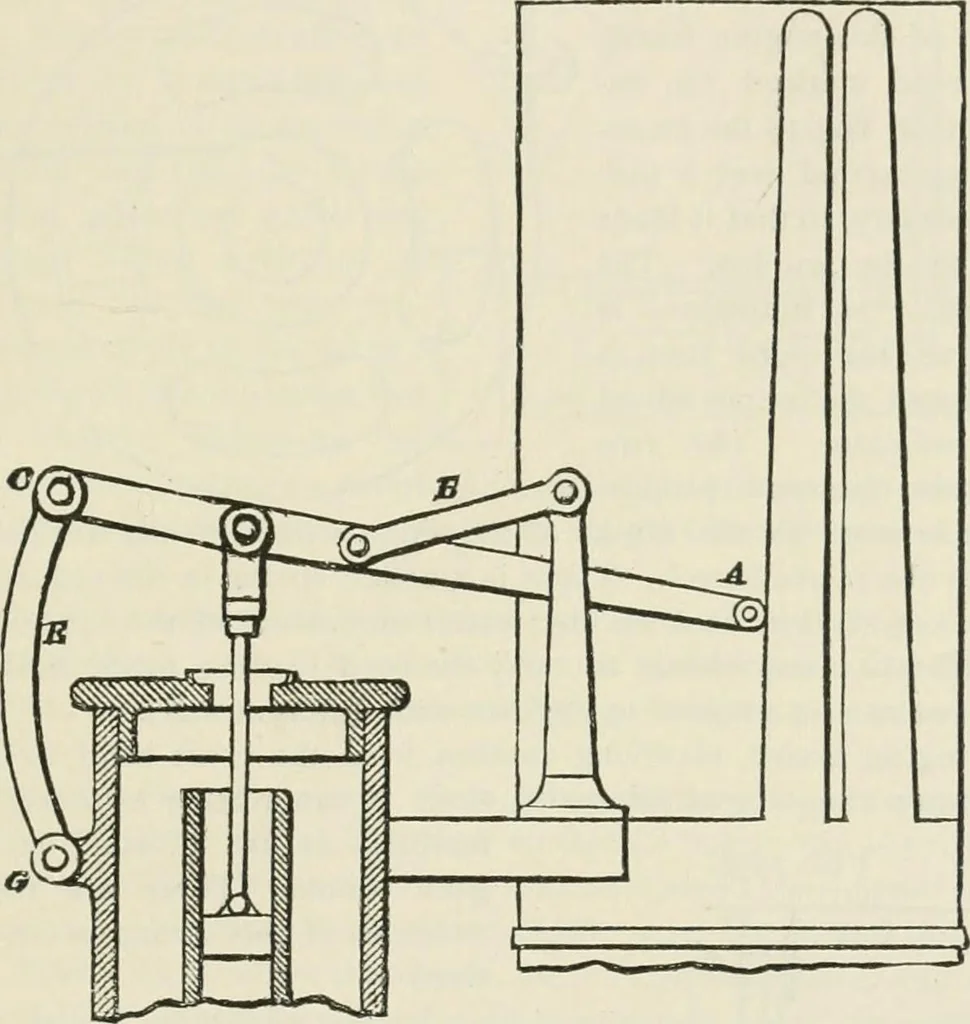

rallel motion. The pencil is inserted at the end of a lever, A C, the otherend of which is jointed to the rocking lever C G, which, with the guide linkB, causes the point A to move in a straight line as the indicator piston risesor falls. § 492-] THE STEAM ENGINE. 411 The arrangements of levers… … A few notes are added in relation to the method of attaching and usingthe indicator. To attach the indicator to the cylinder of an engine, drill a hole in thecylinder, either in the head or close to the end, and tap it out for a half-inchiron nipple. The indicator cock must be connected to this,…
