Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 89

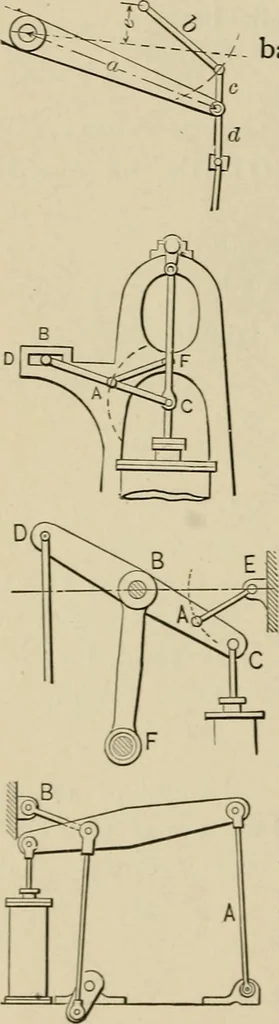

278. PARALLEL MOTION for beam en-gines, in which a and b are of equal length.c andy are of equal length.d and e are of equal length. 279. PARALLEL MOTION, with two pairsof connecting bars. a and b are of equal length.c and d are of equal length,<f, cross-head. … 280. PARALLEL MOTION, with the radius^- bar pivoted above the centre line of the beam.^ and d are of equal length.<f r= ^ or d. b = half a. 281. PARALLEL MOTION for a direct-acting engine. The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
