A manual of elementary geometrical drawing, involving three dimensions. Designed for use in high schools, academies, engineering schools, etc. : and for the self-instruction of inventors,artizans, etc. ... In five divisions .. (1867)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley and son · leaf 122

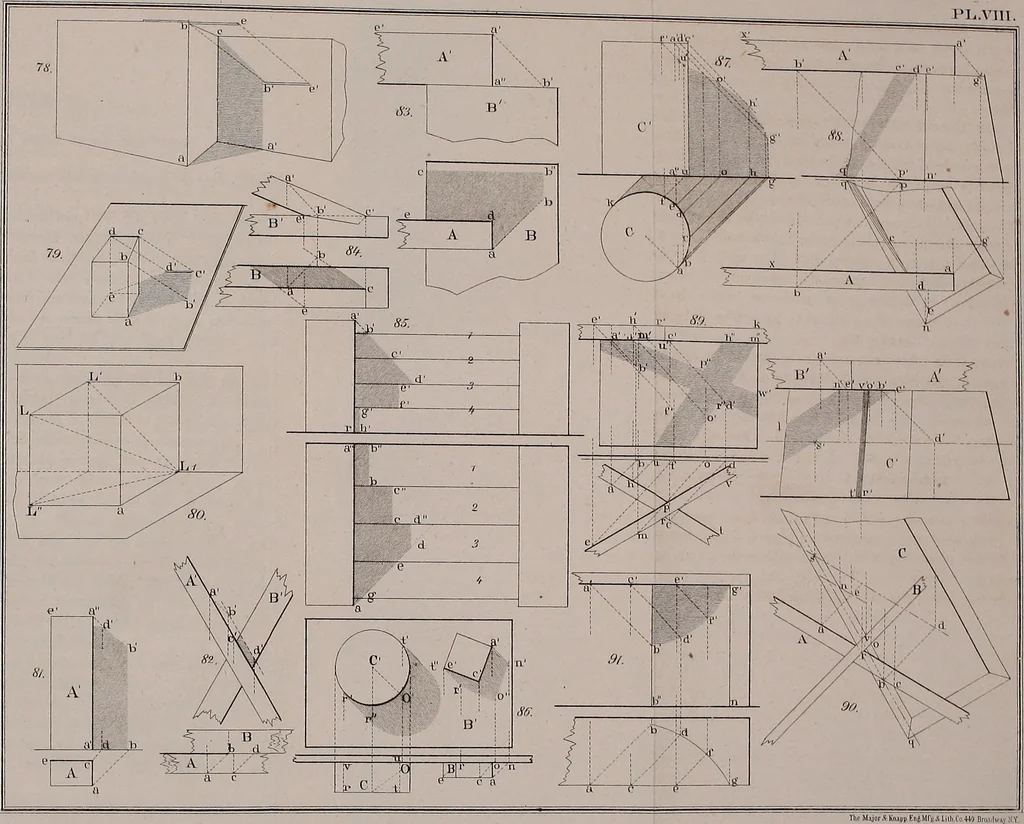

CHAPTER n. PROBLEMS INVOLVING ONLY ISOMETRIC LINES. 206. Prob. 1. To make the isometrical drawing of a cube, froma given plan and elevation. 1st Method. The plan and elevation, PL IX., Fig. 98, repre-sents a cube, whose edge is one inch in length, seen in right pro-jection. To make the isometrical…
Geometrical drawing · Mechanical drawing
