Stereotomy : Problems in stone cutting. In four classes. I. Plane-sided structures. II. Structures containing developable surfaces. III. Structrues containing warped surfaces. IV. Structures containing double-curved surfaces. For students of engineering and architecture (1875)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley and son · leaf 154

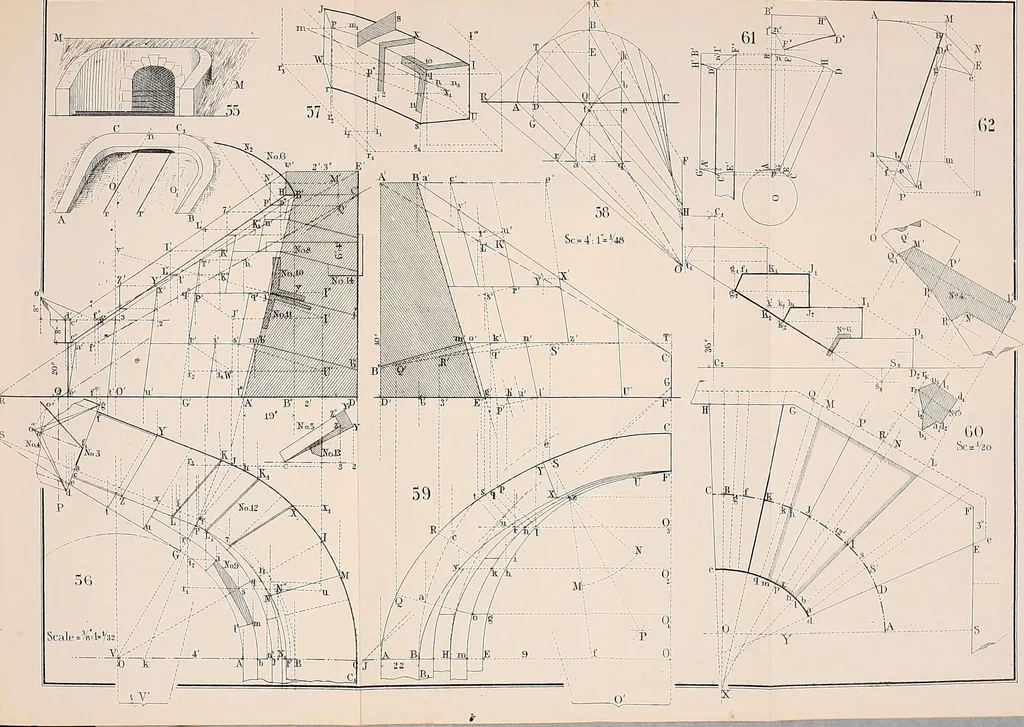

own at Ee/F, and HhH ; andthe area GFIJ which is to be covered by the radiant arch. Thisarch is here represented as closed at its ends by twelve inchwalls ; which, with the piers, form alcoves. 2°. The intrados of the radiant arch will, in any case, natur-ally be a right conoid (114), extending… … STONE-CUTTING. 121 moving so as to be parallel to the springing plane as a planedirector, while moving upon the vertical line at O, and somecurve o£ a height equal to oc2, and included symmetrically be-tween OF and OG. 3°. Two systems. — At this point, there is a choice betweenthe two methods, one…
Stereotomy
