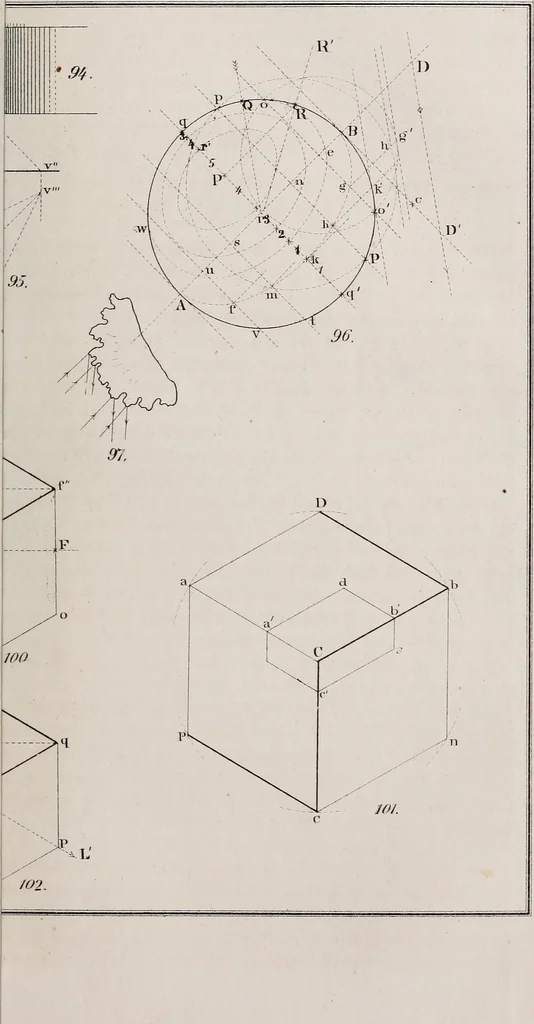

it, and meeting the circleat d. In Fig. 112, make Cc=CV, and make coequal to cd andparallel to CD, then will d be the isometrical position of thepoint d. 222. Prob. 10. To maTce an approximate construction of the iso-metrical draioing of a circle. PI. X., Fig. 113. By trial we shall findthat an…
