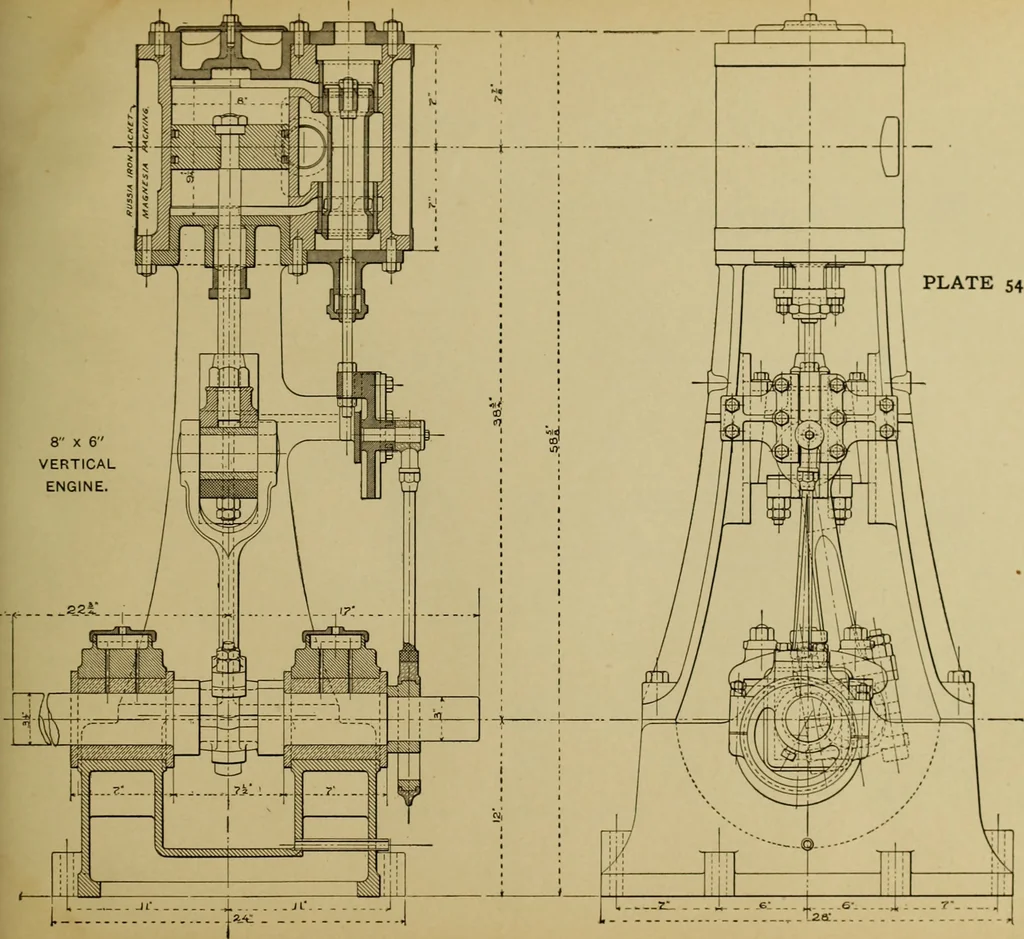

al drawing to correspond. As each drawingor sheet of drawings is completed it is checked at everypoint by another draughtsman, who places his initialsupon it. In making a set of drawings of the engine, whichare included among the shop drawings, the pupil isexpected to work as described above.… … PLATE 55
Mechanical drawing
