Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 465

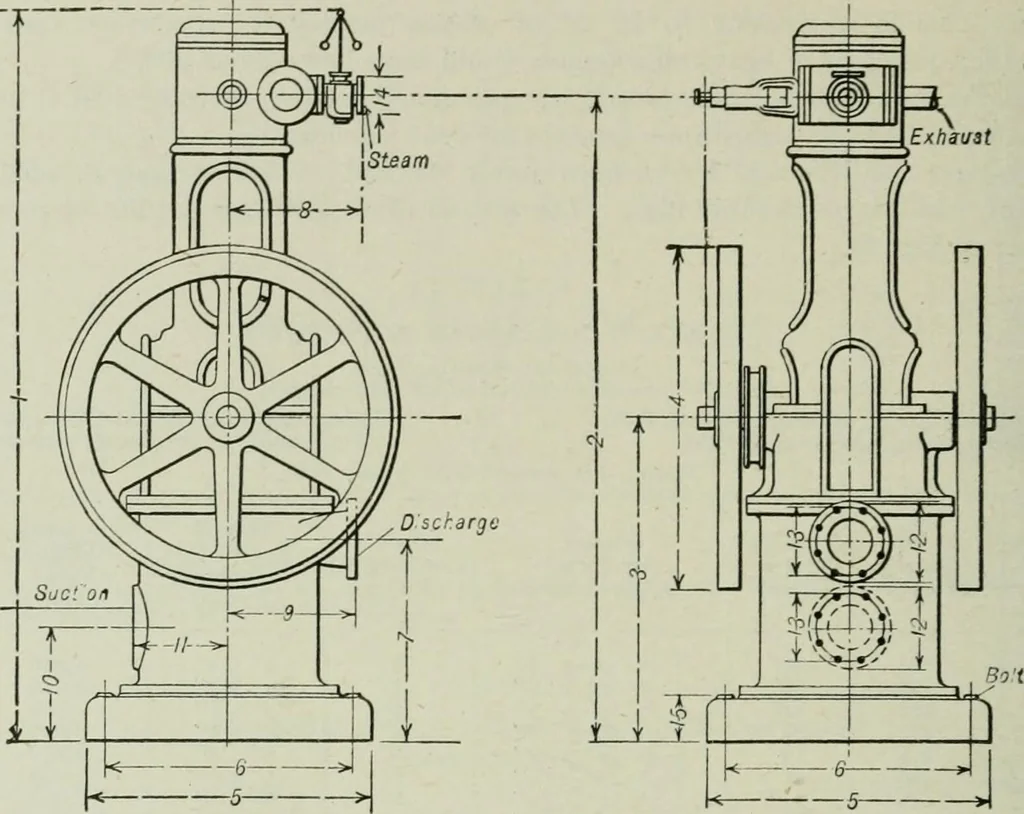

32,000 5,400 H 10-24 X12 15 10 X 10 49,000 9,766.00 45,000 7,625 H 12-30 X14 18 10X10 59,000 13,503.00 Ordinary Type Surface Condenser Installation Data. The type of surface condenser equip-ment ordinarily installed in the average medium-size plant consists of a (1) two-pass condenser; 436 POWER… … Fig. 45. Dimension Dk.wvings of Edwards Aik Pump. TABLE 17 PRINCIPAL DIMENSIONS OF EDWARDS AIR PUMPAll Dimensions in Inches Size 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Stm Exht Sue Dig Bolts 3^2 X 8x 6 4 xlOx 8 5 X 12 X 10 6 X 14 X 10 7 X 16x10 8 X IS X 12 8 X 20 X 12 9 X 24 X 1210 X 26x1212 X 30 x 14…
Building · Heating · Ventilation
