Manual training : first lessons in wood-working (1888)
Compton, Alfred G. (Alfred George), 1835-1913 · New York and Chicago, Ivison, Blakeman and company · leaf 51

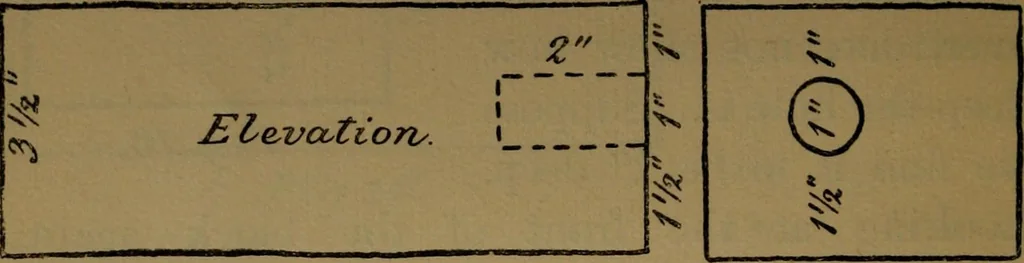

Fiy. 13. 36 Manual Training. of the block. This group of drawings thusmarked, with the dimensions of all the parts,we will call a Figured Sketch or Work-ing Sketch. It is not necessary that thelines be ruled, provided they are drawn toler- 0 … 9 JZtvcI jElevatioiv ^ ^ N J^la,n,. ^ i — i «■ i ._ ably straight, and it is not necessary that theybe exactly in true proportion to each other,though it is best to have them nearly so.Every dimension must be given in at leastone of the drawings. If, for instance, the fig- Wood - Working. 37 ure 3…
Woodwork (Manual training)
