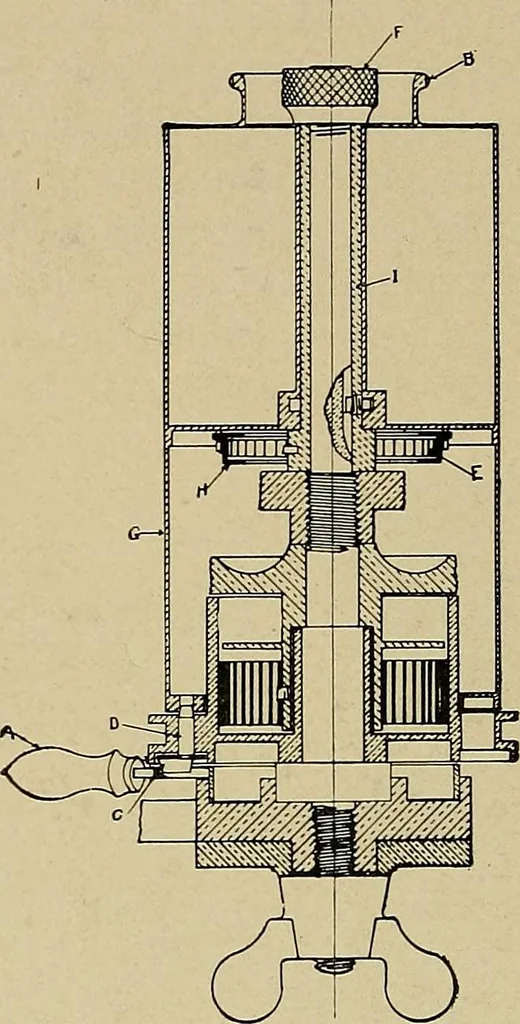

Fig. 5 14 MARINE INDICATING at the upper end. This flange forms a shoulder on which the collarcarrying the two links connecting the pencil lever rests. On top ofthis collar is carried the spring base which is provided with four holesin which is inserted a pin for holding piston-rod) from turning… … Reducing Wheel It frequently happens that engines are not fitted with reducingmotions, and when such cases occur we must resort to the use ofreducing wheels. The reducing wheel shown in Fig. 7 is made of aluminum, brass,and steel, combining lightness and strength, two very essential features.The…
