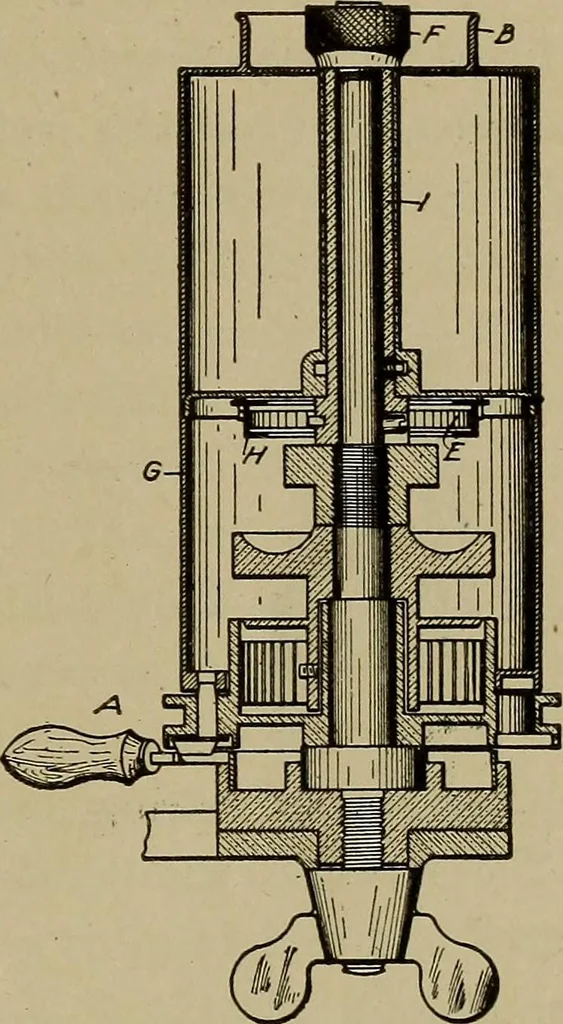

forward until it releases from the catches; thenmove the spring and inner sleeve I. After cleaning and oiling, replacethe inner sleeve I by inserting it into the drum so that the pin on theoutside of the sleeve will enter the slot inside of drum bearing, andturn it until it comes to a stop; then… … Fig. 32. Thompson DetentAttachment 30 STEAM ENGINE INDICATORS ASSEMBLING AND ADJUSTING THE INDICATOR Thus far, it has been the endeavor to mention the chief featuresof different makes of indicators and to point out the importantpoints to be observed in the attachment of the indicator for obtain-ing…
