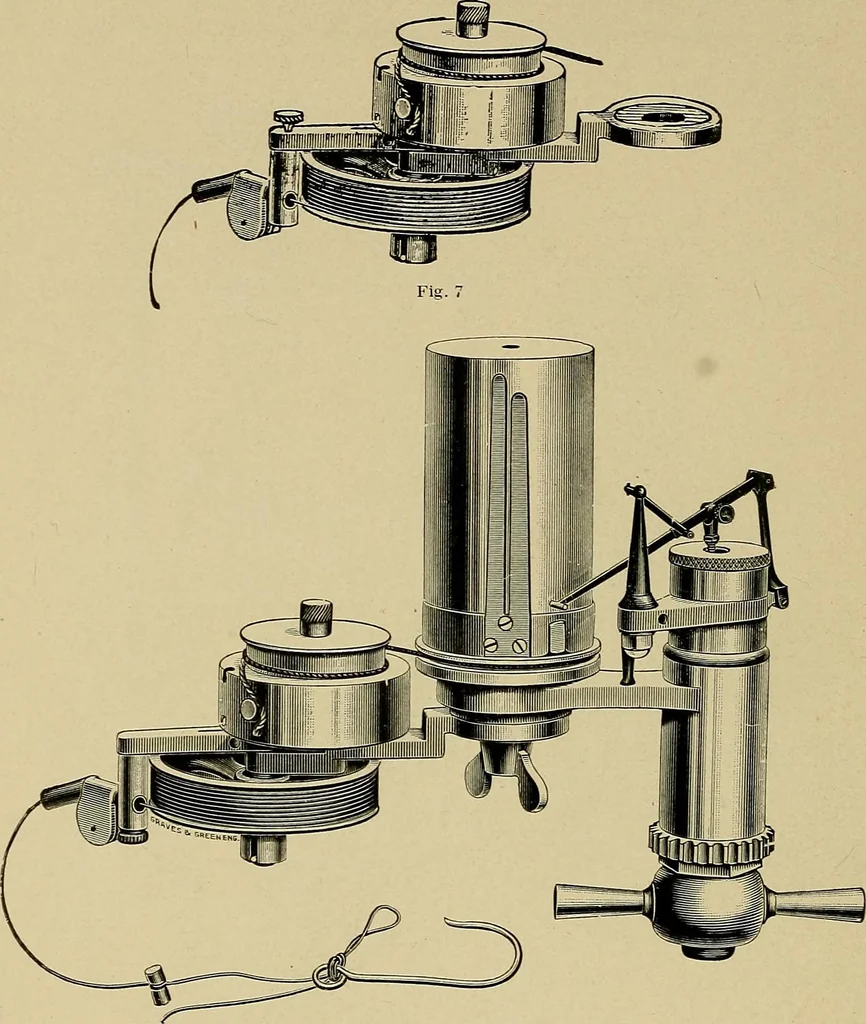

disk from the left. Before hooking in, see that cord on wheel and in-dicator is taut at shortest part of stroke and that it will pull out a littlefurther than longest part of stroke. The cord from reducing wheel to cross-head must run in astraight line. 16 MARINE INDICATING In unhooking the cord do… … Fig. 8 Bushings are furnished of various sizes for small disks so that dia-grams can be taken for any stroke up to 72. Having described the construction of the instrument we will nowtake up the subject of its care and adjustment. Care Before using an indicator take it apart and thoroughly clean and…
