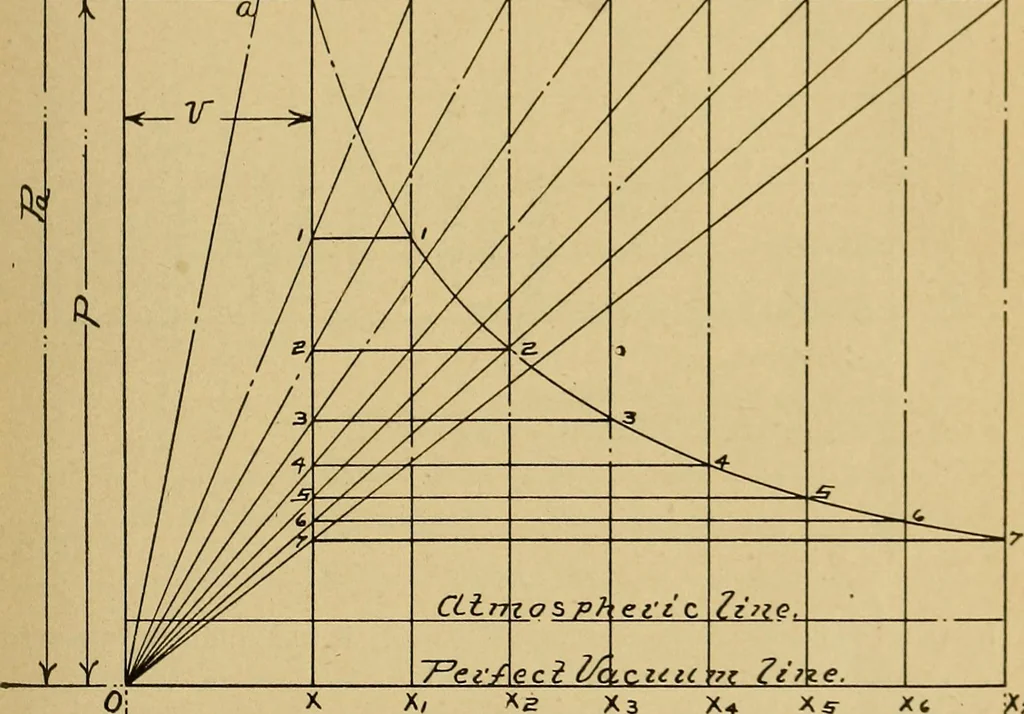

X7 gives the required finial absolute pressure. Wecan conversely find the volume which a quantity of steam V. would MARINE INDICATING occupy at th<^ pressure P. if it. were compressed to the pressure P».To obtain the volume, draw the diagonal line OIP (see I i-r. 16where OU intersects YU, draw… … X */ *B X3 X4 Xy Xt Ciflzj?c7.e.z! Z/~o?z£77ze. A> To illustrate the application of the hyperbolic law of expansion,showing that the product of pressure and volume at any point of theexpansion-curve is constant. Let the line XXI (Fig. 17) representthe stroke of the piston and the corresponding…
