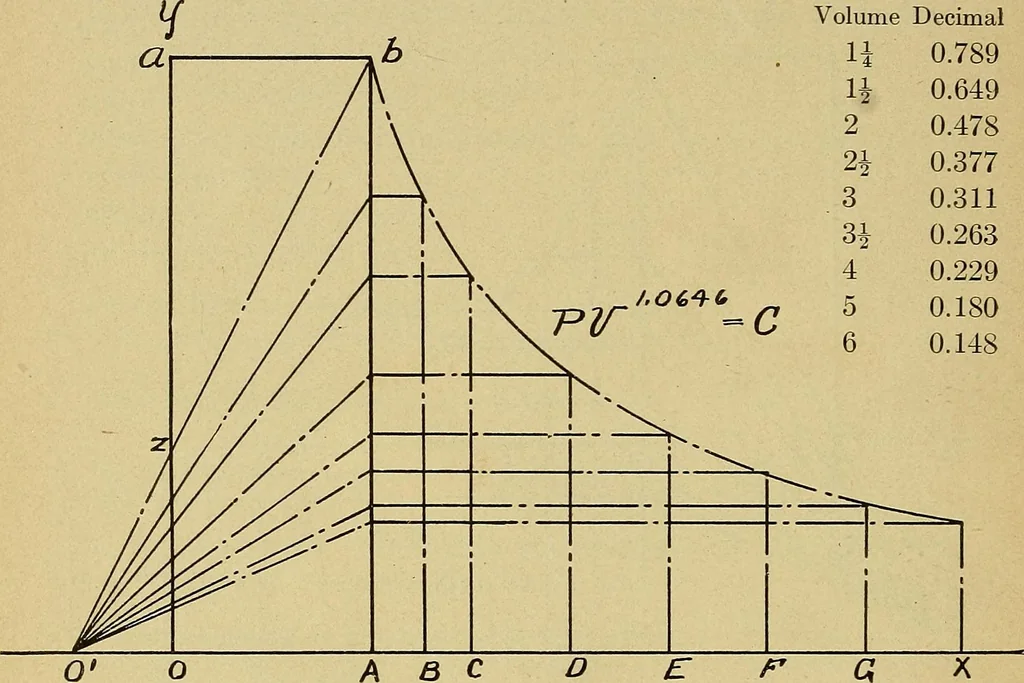

s been repeatedly referred to as thetheoretical curve of expansion. In previous remarks, we see how ab-surd such reference is. The equation to the saturation curve is PVk = C. Now the exponent k for this curve is 1.0646, whilst the exponentfor the hyperbola is 1. The adiabatic curve is PVk = C. The… … Volume Decimal li 0.789 H 0.649 2 0.478 91^2 0.377 3 0.311 3* 0.263 4 0.229 5 0.180 6 0.148 pcciuzcctioiz Ciai/e. Fig. 23 Curves of Expansion With each figure there is given a table of the constants used inconstructing the respective curves. Fig. 22 shows a practical method of plotting the PV = C…
