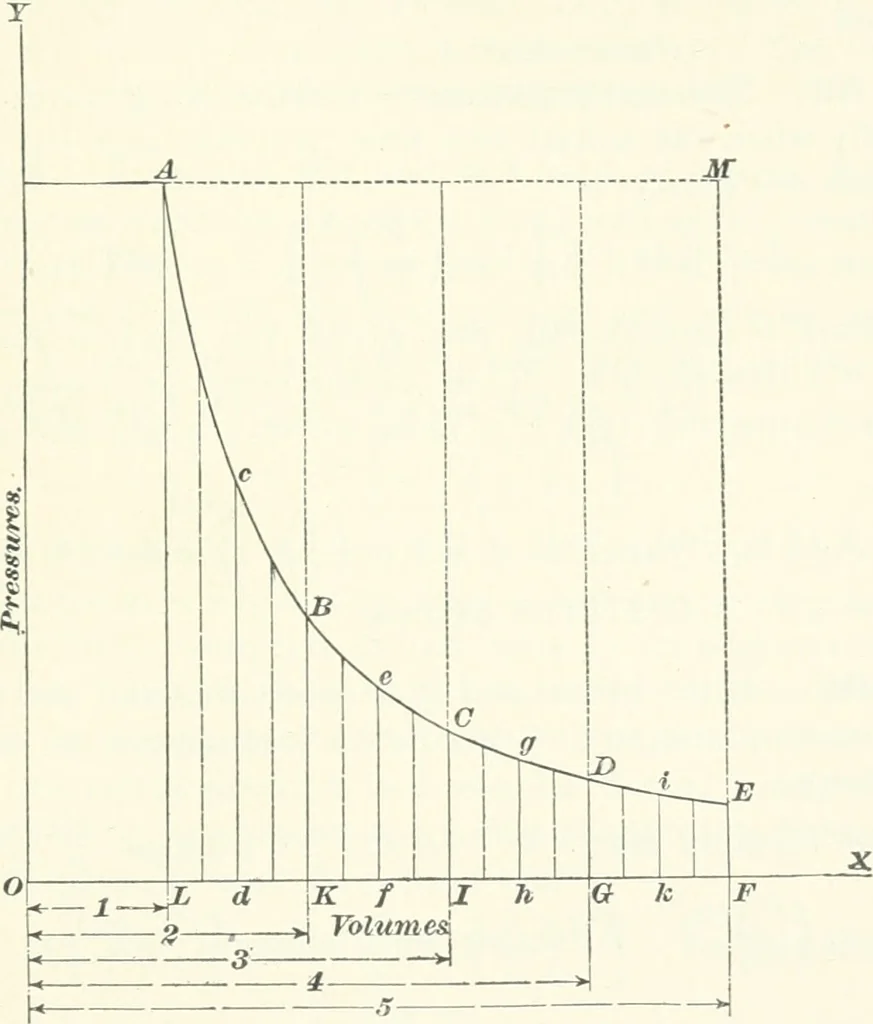

.41 X .39794 = 2 - .5G110 = 1.43890, or/ = 27.47 lb., nearly Calculating in this manner the pressures correspondingto the different values of the volumes for points correspond- \. HEAT. 499 ing to the volume points in Fig. 223, the following resultsare obtained: Pressure corresponding to volume c d… … Fig. 229. —the curve shown in Fig. 229 is produced by tracing theline ABODE through these points. It will be noticed 500 HEAT. that the area oi A E F L in Fig. 220 is considerably smallerthan in Fig. 223; consequently, the mean pressure is less,and the work done in expanding is less. This was to…
