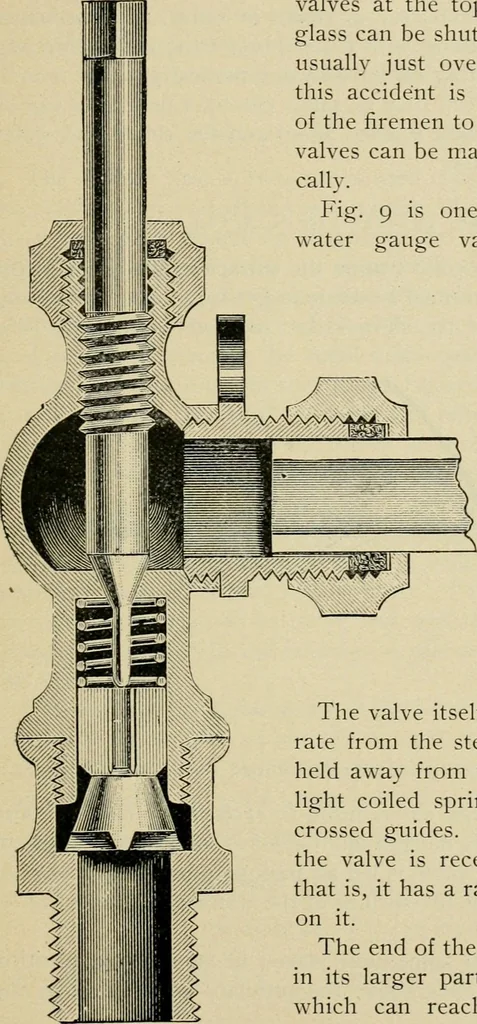

and accuracy after long use. One of thesegauges will be found in the model room. PROBLEMS, NOTES AND SKETCHES. 29 Art. 9.—(P. Ill, S. & O.) It sometimes happens that the gauge glass breaks and steamand hot water are blown violently out into the fire-room until the valves at the top and bottom… … Fig. 9.—Kevsers AutomaticWater Gauge Valve. 9 is one of these automaticgauge valves shown closed.The valve wheel isfitted to the squareend of the stem andthe glass is fitted asshown, the thread-ed end of one valvebeing fitted to thepipe to the steamspace, the other tothe pipe to water,the glass…
